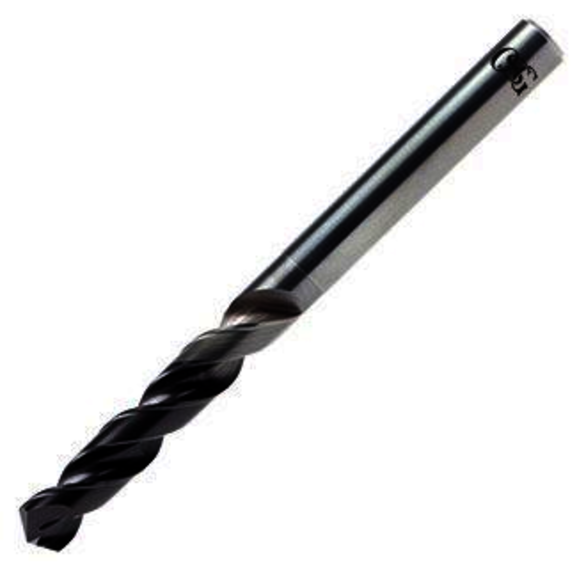

OSG 753031316 5/16 in, 120 Degree, Solid Carbide, Jobber Length Drill Bit
OSG 753031316
$407.46
/ EA
Out of Stock
- Drill Bit Size - Fractional: 5/16 in
- Flute Type: High Helix
- Cutting Direction: Right Hand
- Shank Type: Straight
- Overall Length: 101.6 mm
- Cutting Edge Material: Carbide
- Cutting Width Tolerance: 48.2 mm
- Finish: Diamond Coated
- Flute Length: 1.9000 in
- Flute Length - Metric: 48.2 mm
- Material: Carbide
- Number of Flutes: 2
- Overall Length - Decimal: 101.6 mm
- Point Angle: 120
- Point Type: N Thinning
- Series: 7530
- Shank Size: 7.96
The EXOPRO® AERO-S is a high helix diamond coated drill designed for composites and metal stack materials. It is specifically developed to shear through tough fibers. It features OSG's patented diamond coating and unique geometries such as high helix to assist in chip evacuation
- High helix angle Shears through tough fibers
- Drill point designed for cutting stacks Provides optimal cutting geometry for cutting multiple material stacks
- Thin web and wide flutes Reduces thrust and improves chip evacuation
- OSG's patented diamond coating Ensures smoother and sharper cutting edges providing up to 50 times longer tool life.
Application: CFRP, GFRP, CFRP/Al, Al/Al, Carbon Fiber/Aluminum Stack
OSG 753031316 5/16 in | 120 Degree | Solid Carbide | Diamond | Right Hand | Jobber Length Drill Bit
