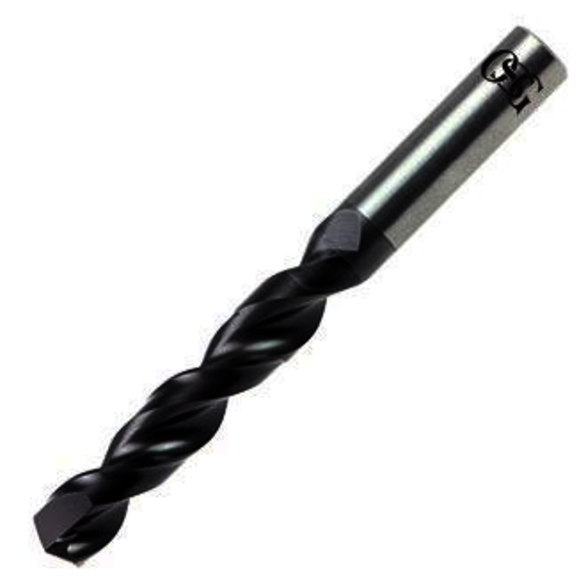

OSG 753212916 0.1290 in, 140 Degree, Solid Carbide, Jobber Length Drill Bit
OSG 753212916
$208.03
/ EA
Out of Stock
- Drill Bit Size - Wire: #30
- Flute Type: Parabolic
- Cutting Direction: Right Hand
- Shank Type: Straight
- Overall Length: 76.2 mm
- Cutting Edge Material: Carbide
- Cutting Width Tolerance: 20.3 mm
- Finish: Diamond Coated
- Flute Length: 0.8000 in
- Flute Length - Metric: 20.3 mm
- Number of Flutes: 2
- Overall Length - Decimal: 76.2 mm
- Point Angle: 140
- Point Type: N Thinning
- Series: 7532
- Shank Size: 3.27
- Material: Carbide
The EXOPRO® AERO-H is a diamond coated carbide drill specifically designed for composite/metal stack applications. It features high helix and parabolic flute form for improved chip evacuation as well as corner radius and end gash to resist chipping.
- Parabolic flute form Improves chip evacuation
- Corner radius and end gash Resists chipping
- OSG's patented diamond coating Ensures smoother and sharper cutting edges providing up to 50 times longer tool life.
Application: CFRP, Carbon Fiber/Titanium Stack, Carbon Fiber/Al/Ti/CRES Stack
OSG 753212916 0.1290 in | 140 Degree | Solid Carbide | Diamond | Right Hand | Jobber Length Drill Bit
