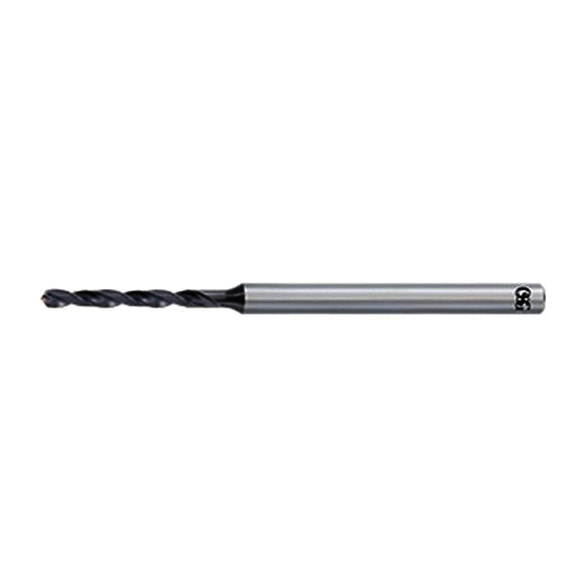

OSG 8577200 0.07874 in, 120 Degree, Solid Carbide, Micro Drill Bit
OSG 8577200
$38.11
/ EA
Out of Stock
- Cutting Direction: Right Hand
- Overall Length: 58.00 mm
- Cutting Edge Material: Carbide
- Cutting Width Tolerance: 24 mm
- Finish: SS Coated
- Flute Length: 24.00 mm
- Flute Length - Metric: 24 mm
- Material: Carbide
- Number of Flutes: 2
- Overall Length - Metric: 58 mm
- Point Angle: 120
- Point Type: X-Thinning
- Series: 5340
- Shank Diameter - Metric: 3 mm
- Shank Size: 3
- Shank Type: Straight
- Flute Type: Spiral
The EXOCARB® MAX-MINI MRS series is the ultra-premium solution for machining micro-sized holes as small as 0.5mm in aluminum and stainless steel. Made of sub-micrograin carbide, this drill features a unique flute designed for both rigidity and wide chip room.
- Tungsten Carbide Improves wear resistance for long tool life
- Super Smooth coating Better chip evacuation and lowers friction during drilling process
- Available in a wide range of micro mm sizes When precision matters
- Longer flute length Enables deeper drilling.
OSG 8577200 0.07874 in | 120 Degree | Solid Carbide | 58.00 mm OAL | Micro Drill Bit
