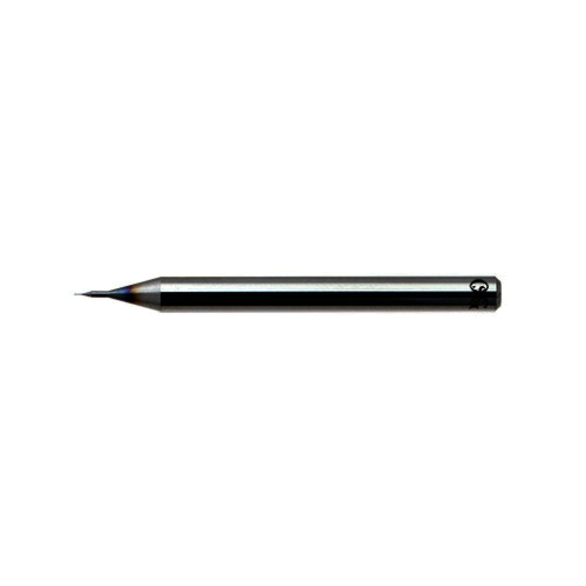

OSG 8589152 0.00079 in, 120 Degree, Solid Carbide, Micro Drill Bit
OSG 8589152
$495.57
/ EA
Out of Stock
- Cutting Direction: Right Hand
- Overall Length: 38.00 mm
- Cutting Edge Material: Carbide
- Cutting Width Tolerance: 0.22 mm
- Finish: SS Coated
- Flute Length: 0.22 mm
- Flute Length - Decimal: 0.22 in
- Material: Carbide
- Number of Flutes: 2
- Overall Length - Metric: 38 mm
- Point Angle: 120
- Point Type: Conventional
- Series: 5325
- Shank Size: 1/8
- Shank Type: Straight
- Flute Type: Spiral
- Shank Diameter - Fractional: 1/8 in
The EXOCARB® MAX-MINI UVM-DRL drill is the ultra premium solution for unsurpassed performance processing micro-sized holes as small as 0.02mm and up to 0.08mm in super alloys, stainless steels and hardened steel up to 50 HRC. This drill is made of sub-micrograin carbide available in various flute lengths.
- Tungsten Carbide Superior wear resistance for long tool life
- Super Smooth coating Better chip evacuation and lowers friction during drilling process
- Pilot, 5D, 10D flute lengths For optimal results.
OSG 8589152 0.00079 in | 120 Degree | Solid Carbide | 38.00 mm OAL | Micro Drill Bit
