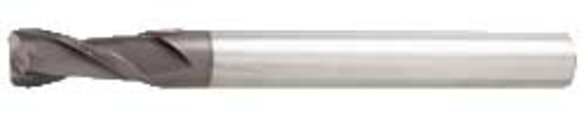

OSG HP432-3934 3 mm Corner Rad, 10 mm Mill Dia, 22 mm LOC, in OAL, Flutes, , , Corner Radius & Corner Chamfer End Mill
OSG HP432-3934
$89.01
/ EA
Out of Stock
- Mill Diameter: 10 mm
- Chamfer Width: 3 mm
- Number of Flutes: 2
- Material: Sub-Micrograin Carbide
- Length of Cut: 22 mm
- Shank Diameter: 10 mm
- Shank Diameter - Decimal: 0.3937 in
- Shank Diameter - Metric: 10 mm
- Overall Length: 100 mm
- Cutting Direction: Right Hand
- Helix Angle: 35 deg
- Cutter Diameter: 10 mm
- Cutter Diameter - Metric: 10 mm
- Diameter: 0.3937 in
- Diameter - Decimal: 0.3937 in
- Diameter - Metric: 10 mm
- End Type: Center Cutting
- Finish: TiAlN Coated
- Finish/Coating: TiAlN Coated
- Flute Type: Spiral
- Length of Cut - Metric: 22 mm
- Length Type: Regular Length
- Overall Length - Metric: 100 mm
- Series: HP432
- Shank Type: Shrink Fit
- Type: Center Cutting
The HY-PRO®-CARB is an entire line up of performance end mills designed for extend tool life.
- Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and commonly used for high speed applications on stainless steels, nickel and titanium alloys.
Application: Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.Especially advantageous in 300, 400 and PH series Stainless Steels.Stable performance in Nickel Alloys and Cobalt Chrome.Larger sizes available with and without Weldon Flats.
OSG HP432-3934 0.3937 in Dia | 2 Flute | Carbide | 0.1181 in | TiALN | Corner Radius & Corner Chamfer End Mill
