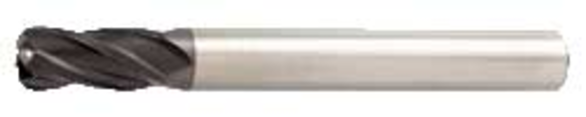

OSG HP434-3152 1.5 mm Corner Rad, 8 mm Mill Dia, 19 mm LOC, in OAL, Flutes, , , Corner Radius & Corner Chamfer End Mill
OSG HP434-3152
$65.33
/ EA
Out of Stock
- Mill Diameter: 8 mm
- Chamfer Width: 1.5 mm
- Corner Radius: 0.0591 in
- Number of Flutes: 4
- Material: Sub-Micrograin Carbide
- Length of Cut: 19 mm
- Shank Diameter: 8 mm
- Shank Diameter - Decimal: 0.315 in
- Shank Diameter - Metric: 8 mm
- Overall Length: 100 mm
- Cutting Direction: Right Hand
- Helix Angle: 35 deg
- Cutter Diameter: 8 mm
- Diameter: 0.31496 in
- Diameter - Metric: 8 mm
- End Type: Corner Radius
- Extended Reach: No
- Finish: TiAlN Coated
- Finish/Coating: TiAlN Coated
- Length of Cut - Metric: 19 mm
- Mill Diameter Tolerance: +0 / -0.038 mm
- Overall Length - Metric: 100 mm
- Series: HP434
- Shank Type: Shrink Fit
- Type: Center Cutting
- Length Type: Regular Length
- Flute Type: Spiral
- Cutter Diameter - Metric: 8 mm
- Diameter - Decimal: 0.31496 in
The HY-PRO®-CARB is an entire line up of performance end mills designed for extend tool life.
- Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN.
Application:Cast iron, Carbon Steels, Alloy Steel, Die Steel, Stainless Steel, Hardened Steel < 45 HRC.
OSG HP434-3152 0.3150 in Dia | 4 Flute | Carbide | 0.0591 in | TiAlN | Corner Radius & Corner Chamfer End Mill
