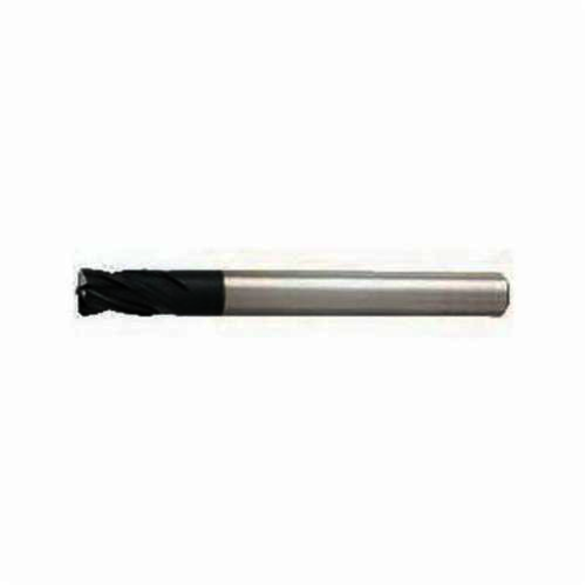

OSG HP435-1960 0.2 mm Corner Rad, 5 mm Mill Dia, 7.5 mm LOC, in OAL, Flutes, , , Corner Radius & Corner Chamfer End Mill
OSG HP435-1960
$37.74
/ EA
Out of Stock
- Mill Diameter: 5 mm
- Chamfer Width: 0.2 mm
- Number of Flutes: 4
- Material: Micrograin Solid Carbide
- Length of Cut: 7.5 mm
- Shank Diameter: 6 mm
- Shank Diameter - Decimal: 0.23622 in
- Shank Diameter - Metric: 6 mm
- Overall Length: 80 mm
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 5 mm
- Cutter Diameter - Metric: 5 mm
- Diameter: 0.19685 in
- End Type: Corner Radius
- Finish: TiAlN Coated
- Finish/Coating: TiAlN Coated
- Length of Cut - Decimal: 7.5 mm
- Neck Diameter: 0.1811 in
- Neck Diameter - Decimal: 0.1811 in
- Neck Diameter - Metric: 4.6 mm
- Neck Length: 7.5 mm
- Overall Length - Metric: 80 mm
- Series: HP435
- Flute Type: Spiral
- Diameter - Metric: 5 mm
- Diameter - Decimal: 0.19685 in
- Shank Type: Cylindrical
The HY-PRO® CARB carbide drill series is an ideal blend of performance and cost efficiency. Strong radial rake combined with precision point geometry and multi-layered coating makes this drill extremely versatile in application. Be it solid or coolant through, these drills yield incredible performance at depths from 3X to 8X diameter.
- Negative radial rake - stronger cutting edge to resist chipping
- Refined honing on cutting edge - provides more consistent performance from the first hole to the last hole
- Multi-layered TiAlN coating - multiple layers provide superior resistance to thermal cracking from heat, versus other mono-layered coatings
- DIN shanks - larger shank provides more rigidity and minimizes the number of holders/collets needed to accommodate all sizes
- Internal coolant holes - coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds
For ferrous and non-ferrous materials
HY-PRO CARB End Mill | Center Cutting | Series: HP435 | 5 mm Cutter Dia | 0.2 mm Corner Radius | 80 mm Overall Length | 7.5 mm Maximum Depth of Cut | 4 Flutes | Spiral Flute | 6 mm Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | Micrograin Solid Carbide | TiAlN Coated
