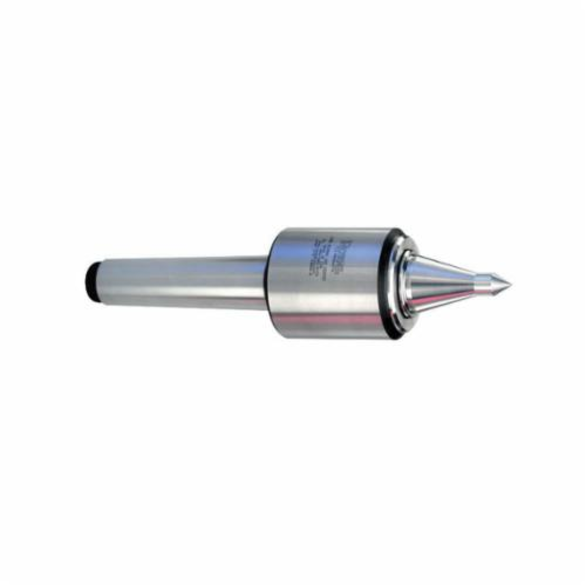

Royal 10476 Heavy Duty High Precision, Tapered Shank, #6 Morse Taper Taper, 5300 lb, 7510 lb, 2210 lb Maximum Workpiece

• The Royal high precision CNC quad bearing live center is an excellent choice for grinders, CNC turning centers and manual lathes
• The extended point of the royal high precision CNC quad bearing live center has been optimized for high rigidity and outstanding tool clearance
• The Royal high precision CNC quad bearing live center is extremely accurate, with runout guaranteed to +/- 0.00005 in TIR or better
• Bearing life is significantly extended with the exclusive Royal Roto-Shield™ coolant slinger and upgraded, long life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids
• This live center model incorporates three precision angular-contact bearings that are secured to the rotating point with a locknut to form a rigid, preloaded assembly, this design is similar to a machine tool spindle cartridge and provides outstanding accuracy and rigidity
• The point of the Royal high precision CNC quad bearing live center extends into the center's body where it is supported by a needle roller bearing, this further increases rigidity, reduces point deflection and dampens vibration
• The low profile head of the Royal high precision CNC quad bearing live center offers exceptional tool clearance
• Both the point and body of this live center model are hardened and ground for strength and extended operating life
• Made with Roto-Shield™ technology

Standards/Approvals: UL Listed, ISO 9001:2008 Certified

For precision turning, grinding and hard-turning

Royal Live Center | Heavy Duty High Precision | Tapered Shank | #6 Morse Taper Taper | 2210 lb Maximum Workpiece Weight | CNC Point | 2 in Point Dia | 3.34 in Point Length | 5300 lb | 7510 lb | 3.82 in Head Dia | 3.89 in Head Length | 14-13/16 in Overall Length | 3000 rpm Maximum | 60 deg Included Angle | Quad Bearing | Steel | +/-0.00005 in TIR Accuracy
