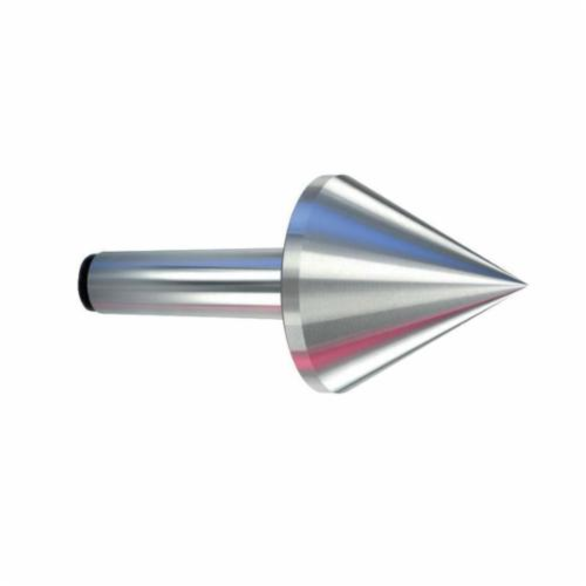

Royal 10704 Pipe Head, Tapered Shank, #4 Morse Taper Taper, 3180 lb, 630 lb Maximum Workpiece

• Royal pipe head live centers are designed for turning pipes, tubes and parts with extra large center holes
• Head diameters on royal pipe head live centers are 1/8 in larger than nominal size, enabling these centers to cover a wider range of work pieces and eliminating the need to purchase the next larger size center
• Two matched angular contact bearings provide solid thrust and radial loads
• Both the body and head are hardened and ground for strength and accuracy on all royal pipe head live centers
• Accuracy of the Royal pipe head live centers is very high, with runout guaranteed to +/- 0.00005 in TIR

Standards/Approvals: UL Listed, ISO 9001:2008 Certified

For turning pipes, tubes, and parts with extra-large center holes

Royal Live Center | Pipe Head | Tapered Shank | #4 Morse Taper Taper | 630 lb Maximum Workpiece Weight | Pipe Nose Point | 1 in Point Dia | 4.1 in Point Length | 3180 lb | 4.15 in Head Dia | 4-1/8 in Head Length | 8-11/16 in Overall Length | 4500 rpm Maximum | 60 deg Included Angle | Double Bearing | Steel | +/-0.00005 in TIR Accuracy
