Royal Products

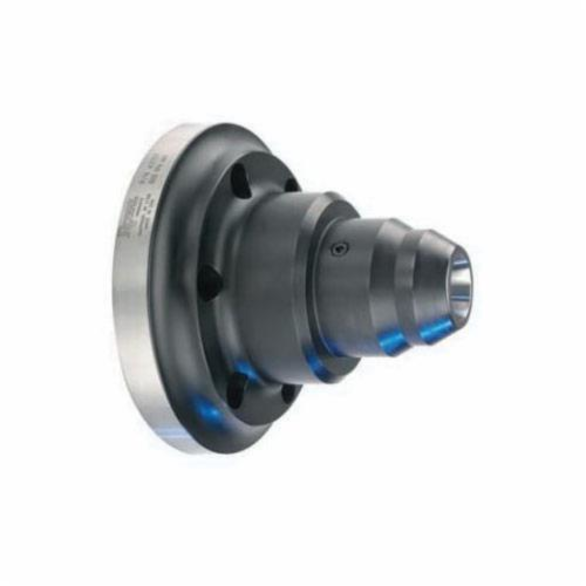

Royal 42063 Low Profile Pullback, 1-3/4 in, 3.87 in Chuck

ROYAL 42063
$3,381.30 / EA
Out of Stock
Product Image
  • Body Diameter - Decimal: 3.87 in
  • Body Diameter - Metric: 98.29 mm
  • Nose Diameter - Decimal: 3.25 in
  • Nose Diameter - Fractional: 3-1/4 in
  • Nose Diameter - Metric: 82.55 mm
  • Overall Length: 6 in
  • Shank Length: 1.05 in
  • Size: 1-3/4 in
  • Type: Low Profile;Pullback
  • Royal low profile conc. collet chucks have been optimized for outstanding accuracy and rigidity
  • The low profile nose of these chuck models offers excellent tool clearance
  • Pullback models offer a great low-cost work holding solution
  • All royal low profile conc. collet chucks incorporate our exclusive bolt and Go™ mounting
  • All royal conc. collet chucks are balanced by design for high-speed operation, and can often be run at higher speeds than conventional 3-jaw chucks because they are less prone to the negative effects of centrifugal force
  • Royal Accu-Length™ conc. collet chucks incorporate dead-length operation to eliminate part pull-back, with this design, a tapered sleeve pushes forward over the collet to compress it, resulting in precise z-axis positioning
  • An oversized flange acts as a coolant slinger to protect lathe spindle bearings from contaminants
  • Royal Accu-Length™ master collets contain multiple keyways for fine adjustability, this is an especially useful feature for second-spindle applications
  • Completely sealed, lubricated for life, these chucks incorporate multiple O-ring seals to keep contaminants out and prevent chip pack-up on bore-thru applications
  • Royal manufactures a wide range of Accu-Length™ collet chucks to fit all popular spindle noses and collet styles, gripping capacities range from 1/64 to 3 in diameter
  • All Royal Accu-Length™ conc. collet chucks are guaranteed to run within 0.0002 in TIR
  • All royal low profile collet chucks include a collet wrench, lubricator, mounting hardware, mounting wrenches, and a custom-machined drawtube connector for hassle-free installation
  • A2-6 spindle
  • 3J collet
  • 5390 lb max drawbar force
  • 26340 lb max clamping force
  • 6000 max rpm
  • 7.45 in flange diameter

Includes: Collet Wrench, Mounting Hardware and Custom-Machined Drawtube Connector

Standards/Approvals: UL Listed, ISO 9001:2008 Certified

Royal CNC Collet Chuck | Low Profile Pullback | 1-3/4 in | 6 in Overall Length | 1.05 in Shank Length | 3-1/4 in Nose Dia | 3.87 in Chuck
