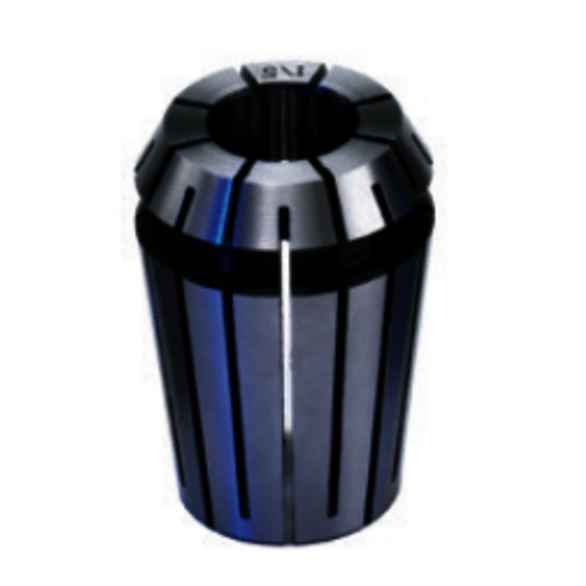

ROYAL 53106 5/16 Dia Standard Cylindrical Steel Collet
ROYAL 53106
$49.68
/ EA
Out of Stock
- Maximum Collet Capacity: 0.3120 in
- Minimum Collet Capacity: 0.2730 in
- Overall Diameter: 1.0350 in
- Part Number: 53106
- Size: ER25
- Type: Standard Ultra-Precision
Additional Information:
0.0002 Inch TIR
Notes:
Ultra-Precision Accuracy – 0.0002 TIR guaranteed.
High-pressure approved to 1400 psi.
Unique design is mechanically sealed by virtue of the rear
slots terminating prior to the annular groove, completely
blocking the path of coolant flow to the front of the collet.
When using thru-coolant cutting tools, these collets ensure
100% coolant delivery to the tip of the cutting tool.
Superior to collets sealed with silicone/rubber plugs
because the plugs are limited to lower operating pressures
and are subject to wear.
Unlike standard ER collets, sealed models do not have a
wide collapsibility range, requiring the collet bore to be
matched to the cutting tool shank diameter.
