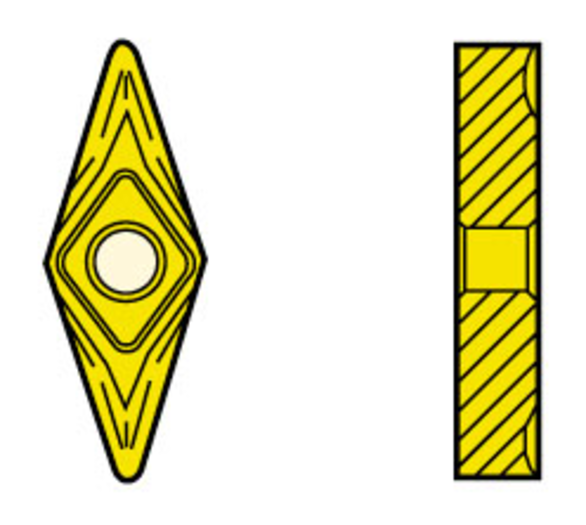

Seco 00000186 Turning Insert, ANSI Code: VNGM331F-MF1 CP500, VNGM Insert, Material Grade: M, S, 160404 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Super Alloys and Titanium, Carbide, Manufacturer's Grade: CP500
SECO 00000186
$62.47
/ Order multiples of 5 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: VNGM
- Insert Size: 160404
- Material: Carbide
- Thickness: 4.76 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: CP500
- Chipbreaker: MF1
- Clearance Angle: 0 deg
- Cutting Direction: Neutral
- Hole Diameter - Metric: 3.81 mm
- Included Angle: 35 deg
- Inscribed Circle - Metric: 9.52 mm
- Inscribed Circle Size: 0.375 in
- Material Grade: M, S
- Maximum Depth of Cut: 3.75 in
- Rake: Negative
- Screw Diameter - Decimal: 0.15 in
- Screw Diameter - Metric: 3.81 mm
- Seat Size: 16
- Shape: Diamond
INSERT VNGM331F-MF1 CP500
