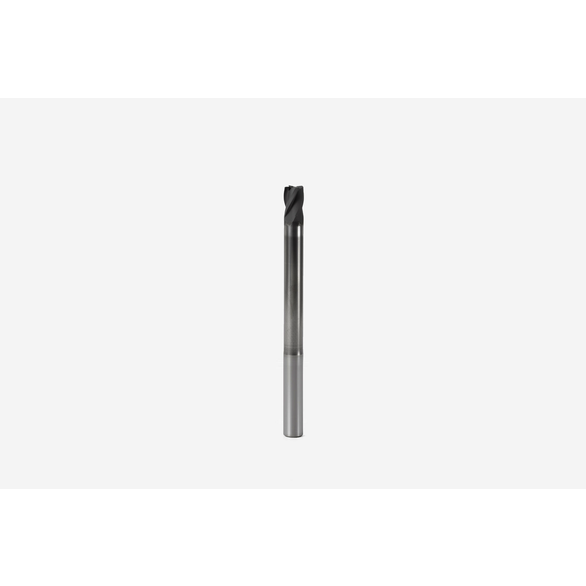

JABRO® Diamond 00023480 JABRO® Diamond JD640 Center Cutting Single End End Mill, 8 mm Dia Cutter, 0.5 mm Corner Radius, 10 mm Length of Cut, 4 Flutes, 8 mm Dia Shank, 80 mm OAL, Diamond/CVD Coated
SECO 00023480
$331.56
/ EA
Out of Stock
- Mill Diameter: 8 mm
- Corner Radius: 0.5 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 10 mm
- Shank Diameter: 8 mm
- Overall Length: 80 mm
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Cutter Diameter: 8 in
- Finish/Coating: Diamond CVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 10 mm
- Overall Length - Metric: 80 mm
- Shank Type: Cylindrical
The Diamond line offers a wide range of geometries specially designed for graphite machining and covers diameters between 0.2 to 12 mm. The combination of hard metal and diamond coating was developed by Jabro Tools in such way that perfect adhesion of the coating is guaranteed.
Radial, Ramping, Plunging and Drilling
JABRO End Mill | Center Cutting Single End | Series: JABRO Diamond JD640 | 8 mm Cutter Dia | 0.5 mm Corner Radius | 80 mm Overall Length | 10 mm Maximum Depth of Cut | 4 Flutes | Right Spiral Flute | 8 mm Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: 640V080R050-DIAMOND | ISO Code: 640V080R050-DIAMOND | Solid Carbide | Diamond/CVD Coated
