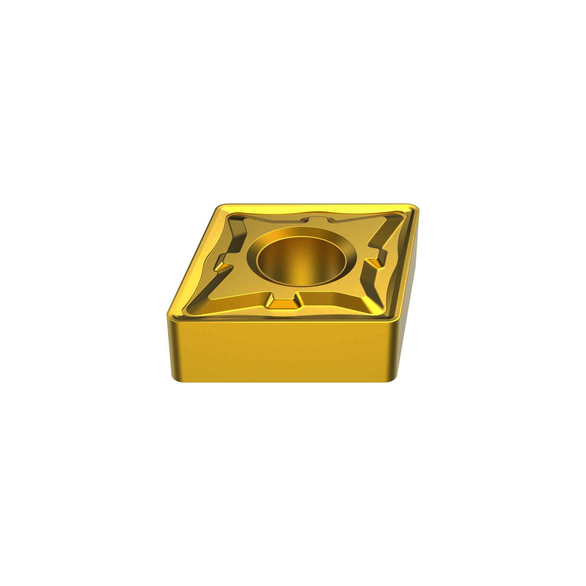

Seco 00038250 Turning Insert, ANSI Code: CNMG544-M5 TP40, CNMG Insert, Material Grade: M, P, 160616 Insert, Diamond Shape, 16 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide, Manufacturer's Grade: TP40
SECO 00038250
$29.68
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiC+TiCN+TiN Coated
- Insert Style: CNMG
- Insert Size: 160616
- Material: Carbide
- Length: 16.1 mm
- Thickness: 6.35 in
- Corner Radius: 1.6 mm
- Manufacturer's Grade: TP40
- Chipbreaker: M5
- Corner Radius - Metric: 1.6 mm
- Cutting Direction: Neutral
- Finish: CVD
- Hole Diameter - Decimal: 0.25 in
- Hole Diameter - Metric: 6.35 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 15.88 mm
- Inscribed Circle Size: 15.88 mm
- Material Grade: M, P
- Maximum Depth of Cut: 8 in
- Rake: Negative/Positive
- Relief Angle: 0 deg
- Seat Size: 16
- Shape: Diamond
- Type: Negative;Basic Shape
- Width: 15.88 mm
INSERT CNMG544-M5 TP40
