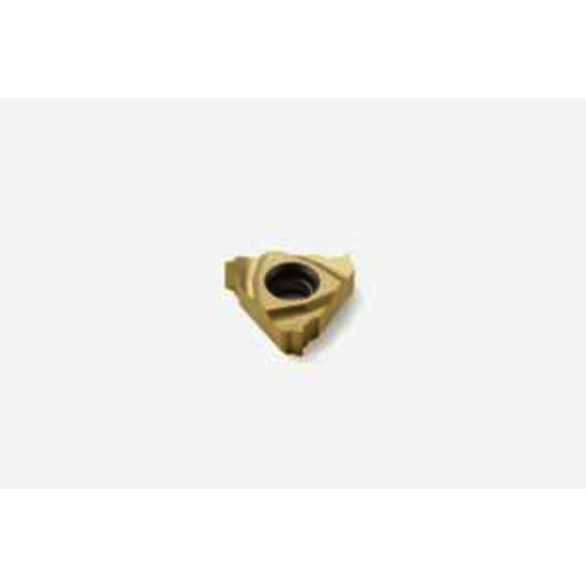

Seco 00050449 Snap-Tap® Laydown Threading Insert, ANSI Code: 16NR10UN CP500, 16NR Insert, 10 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M
SECO 00050449
$46.72
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: 16NR
- Insert Size: 16
- Thread Standard: UN
- Manufacturer's Grade: CP500
- Material Grade: M
- Material: Carbide
- Chipbreaker: 09NR/11Nx/16Nx/22Nx/27NR
- Corner Radius: 0.18 in
- Cutting Direction: Right Hand
- Finish: TiAlN/TiN/PVD
- Included Angle: 60 deg
- Inscribed Circle - Metric: 9.5 mm
- Inscribed Circle Size: 9.5 mm
- Length: 16.5 mm
- Series: Snap-Tap
- Thickness: 3.5 in
- Thread Form Type: UN
- Threads per Inch: 10
- Type: Laydown
- Thread Type: Internal
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
Seco Threading Insert | Laydown | Series: Snap-Tap | 16NR Insert | 16 Insert | Internal Thread | UN Thread Standard | 10 TPI Threads per Inch | 9.5 mm Inscribed Circle | 3.5 mm Thickness | 16.5 mm Length | ANSI Code: 16NR10UN CP500 | ISO Code: 16NR10UN CP500 | 0.18 mm Corner Radius | 60 deg Included Angle | Manufacturer's Grade: CP500 | Right Hand Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M
