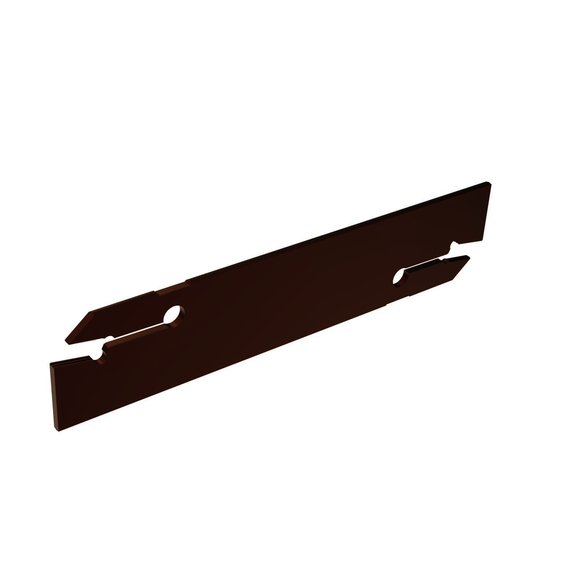

Seco 00053889 Multi-Directional Indexable Turning Tool Holder, ANSI Code: CFON32-03, CFON Tool Holder, LC..1603.. Insert, Neutral Cutting, Blade Shank, 90 deg Lead Angle, 150 mm OAL
- Lead Angle: 90 deg
- Cutting Direction: Neutral
- Inscribed Circle - Metric: 9.53 mm
- Insert Seat Size: 3
- Overall Length - Metric: 150 mm
- Shank Type: Blade
- Tool Holder Style: CFON
The Seco MDT (Multi-Directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off, and threading. The unique Secoloc™ clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc™ combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability. MDT is available also in combination with Jetstream Tooling®, a high pressure cooling system directing coolant supply to the cutting edge.
Turning and Grooving
Seco Indexable Turning Tool Holder | Multi-Directional | CFON Tool Holder | 150 mm Overall Length | Blade Shank | Insert Compatibility: LC..1603.. | 3 Insert Seat | Neutral Cutting Direction | 9.5299999999999994 mm Inscribed Circle | 90 deg Lead Angle | ANSI Code: CFON32-03
