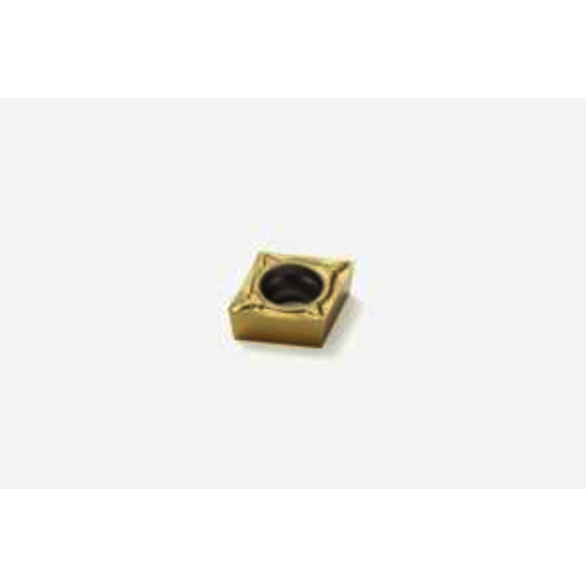

Seco 00064899 Turning Insert, ANSI Code: CPMT21.50.5-F1 CP200, CPMT Insert, Material Grade: M, S, 060202 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturer's Grade: CP200
SECO 00064899
$14.79
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: CPMT
- Insert Size: 060202
- Material: Carbide
- Length: 6.5 mm
- Thickness: 2.38 in
- Corner Radius: 0.2 in
- Manufacturer's Grade: CP200
- Chipbreaker: F1
- Cutting Direction: Neutral
- Finish: PVD
- Hole Diameter - Decimal: 0.11023 in
- Hole Diameter - Metric: 2.9 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 6.35 mm
- Inscribed Circle Size: 6.35 mm
- Material Grade: M, S
- Maximum Depth of Cut: 2.5 in
- Rake: Positive
- Relief Angle: 11 deg
- Seat Size: 06
- Shape: Diamond
- Type: Basic Shape;Positive
- Width: 6.35 mm
INSERT CPMT21.50.5-F1 CP200
