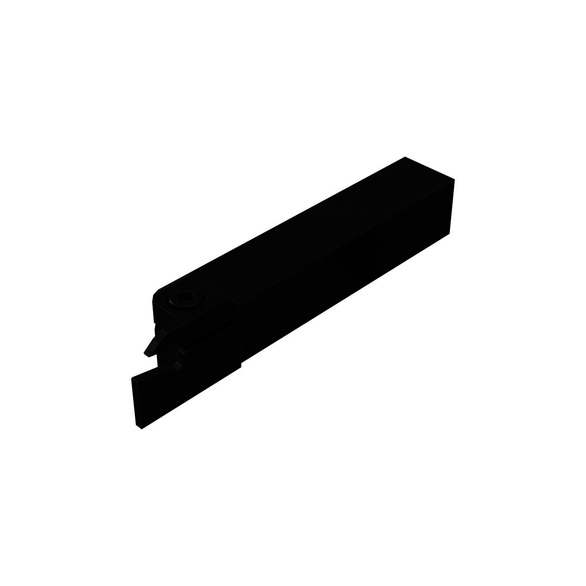

Seco 00068777 MDT Indexable Turning Tool Holder, ANSI Code: CFMR2020K03, CFM Tool Holder, LC..1603.. Insert, Right Hand Cutting, 20 mm Square Shank, 90 deg Lead Angle, 125 mm OAL
- Lead Angle: 90 deg
- Back of Bar to Cutting Edge - Metric: 21.5 mm
- Cutting Direction: Right Hand
- Head Length - Metric: 36 mm
- Insert Seat Size: 3
- Material: Steel
- Overall Length - Metric: 125 mm
- Shank Size: 20
- Shank Type: Square
- Tool Holder Style: CFM
The highly stable and reliable Seco MDT (Multi-Directional turning) system consists of holders and inserts that offers excellent performance in thread turning operations. Products are available for both external and internal threads. Its unique clamping method is a combination of V-shaped top clamp and serrated contact surfaces between the underside of the insert and tool holder, resulting in superb stability.
Seco Indexable Turning Tool Holder | Series: MDT | CFM Tool Holder | 125 mm Overall Length | Square Shank | 20 mm Shank | Insert Compatibility: LC..1603.. | 3 mm Insert Seat | Right Hand Cutting Direction | 21.5 mm Back of Bar to Cutting Edge | 90 deg Lead Angle | 36 mm Head Length | ANSI Code: CFMR2020K03 | ISO Code: CFMR2020K03 | Steel
