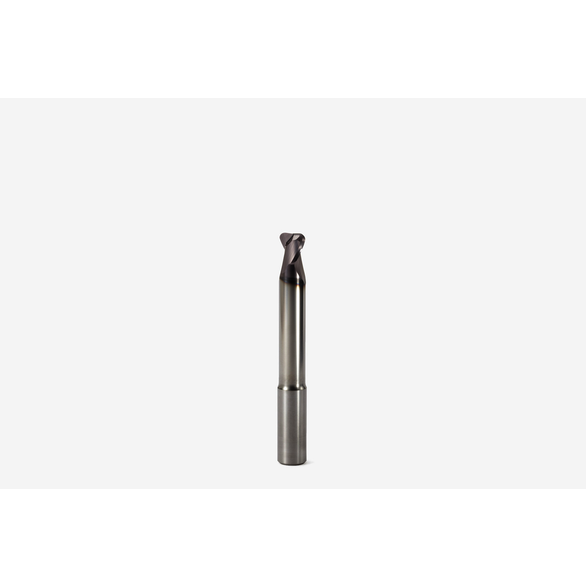

JABRO® H/Tornado 02438684 JABRO® H/Tornado JH421 Center Cutting High Performance Single End End Mill SM
- Mill Diameter: 16 mm
- Corner Radius: 4 mm
- Number of Flutes: 2
- Material: Solid Carbide
- Length of Cut: 18 mm
- Shank Diameter: 16 mm
- Shank Diameter - Metric: 16 mm
- Overall Length: 100 mm
- Cutting Direction: Right Hand
- Helix Angle: 30 deg
- Corner Radius - Metric: 4 mm
- Cutter Diameter: 16 mm
- Cutter Diameter - Metric: 16 mm
- Finish/Coating: MEGA-T/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 18 mm
- Overall Length - Metric: 100 mm
- Shank Type: Cylindrical
Seco is offering you the Tornado program. Tornado is a complete range of solid carbide cutters especially developed for high speed machining. Tornado is the result of continuous research into the best possible combination of solid carbide quality, cutter geometry and coatings in relation to the material to be machined.
Radial, Ramping, Plunging and Drilling
JABRO End Mill | Center Cutting High Performance Single End | Series: JABRO HSM/Tornado JH421 | 16 mm Cutter Dia | 4 mm Corner Radius | 100 mm Overall Length | 18 mm Maximum Depth of Cut | 2 Flutes | Right Spiral Flute | 16 mm Shank Dia | Right Hand Cutting | 30 deg Helix Angle | Cylindrical Shank | ANSI Code: 421160R400Z2AMEGA-T | ISO Code: 421160R400Z2AMEGA-T | Solid Carbide | MEGA-T/PVD Coated
