Seco Feedmax™ 02450070 SD205A-M Single Diameter Shank Drill, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 140 deg Point, Solid Carbide, PVD-TiN+TiAlN Coated

Seco Feedmax™ solid carbide drills combine state-of-the-art carbide, coating and geometry technology into a unique high performance tool. The self-centering geometry provides high hole quality with no need for center drilling operations. A special TiAlN coating gives Seco Feedmax™ drills high hot hardness that, combined with a strong cutting edge, ensures long and predictable tool life. Seco Feedmax™ drills feature high strength carbide rods to minimize the risk of breakage and a low friction coating (TiAlN) for excellent chip evacuation. A protective corner chamfer further enhances application security.

• Seco Feedmax™ is designed for high productivity and low cost per hole with high feeds up to 0,70 mm/rev and high cutting speeds up to 220 m/min
• With excellent centering capabilities - high hole quality is achieved with no need for center drilling operations
• Thanks to the modern coating with high hot hardness, the strong cutting edges with protective corner chamfers, high strength carbide rod, excellent chip evacuation capabilities and a superb cutting edge quality - a long and predictable tool life is achieved
• Seco Feedmax™ has a wide range of optimized geometries for different materials and applications, to obtain a good quality hole at the lowest cost
• High feeds and cutting speeds
• Close tolerance holes

Standard/Approvals: DIN 6537A

For cutting and machining

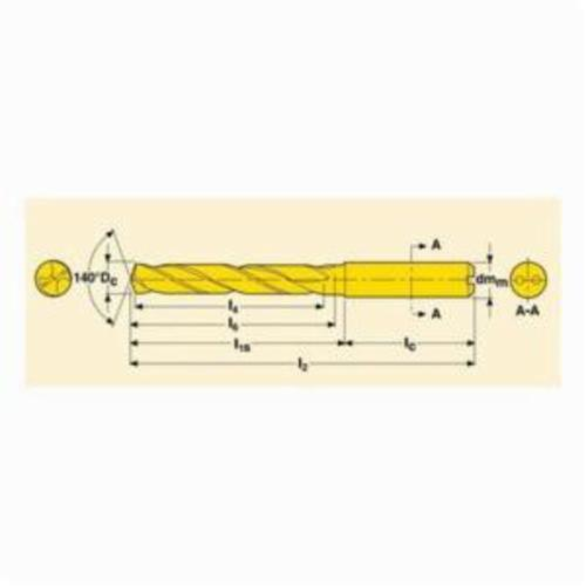

Seco Feedmax Jobber Length Drill | Single Diameter | Series: SD205A-M | Imperial | 3/8 in Dia | 103 mm Overall Length | 5XD Cutting Depth | 2 Flutes | Spiral Flute | 61 mm Flute Length | 10 mm Dia x 40 mm L Shank | Cylindrical Shank | 140 deg Point | Self-Centering Point | Right Hand Cutting | Solid Carbide Cutting Edge | Through Coolant: Yes | Solid Carbide | PVD-TiN+TiAlN Coated | Applicable Materials: Superalloy
