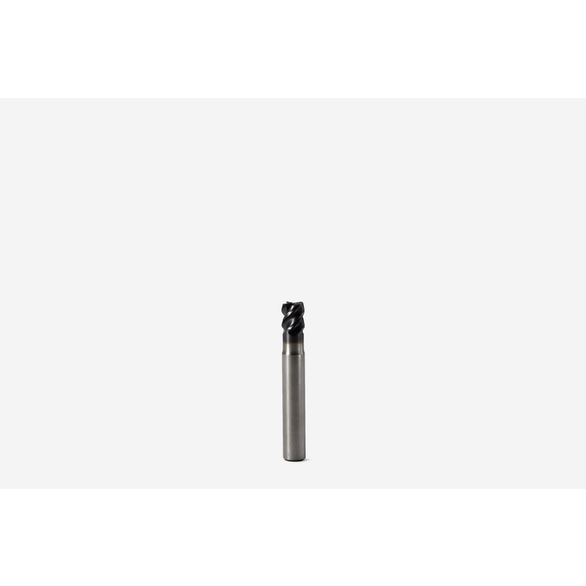

JABRO® HPM 02452929 JABRO® HPM JHP170 Center Cutting High Performance Single End End Mill, 6 mm Dia Cutter, 0.1 mm Corner Radius, 6 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 50 mm OAL, MEGA-64/PVD Coated
- Mill Diameter: 6 mm
- Corner Radius: 0.1 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 6 mm
- Shank Diameter: 6 mm
- Overall Length: 50 mm
- Cutting Direction: Right Hand
- Helix Angle: 50 deg
- Cutter Diameter: 6 in
- Finish/Coating: MEGA-64/PVD Coated
- Flute Type: Right Spiral
- Overall Length - Metric: 50 mm
- Shank Type: Cylindrical
High performance machining (HPM) is a machining strategy where high metal removal rates can be achieved by using conventional feeds and speeds in combination with very high ae and ap values. The result is high productivity (material removal rates up to 400% higher compared to conventional machining) and the lowest possible production costs. The HPM range consists of tools for soft, medium and hard steel, stainless steel, super alloys and titanium.
Radial and Ramping Applications
JABRO End Mill | Center Cutting High Performance Single End | Series: JABRO HPM JHP170 | 6 mm Cutter Dia | 0.1 mm Corner Radius | 50 mm Overall Length | 6 mm Maximum Depth of Cut | 4 Flutes | Right Spiral Flute | 6 mm Shank Dia | Right Hand Cutting | 50 deg Helix Angle | Cylindrical Shank | ANSI Code: 170060-MEGA-64 | ISO Code: 170060-MEGA-64 | Solid Carbide | MEGA-64/PVD Coated
