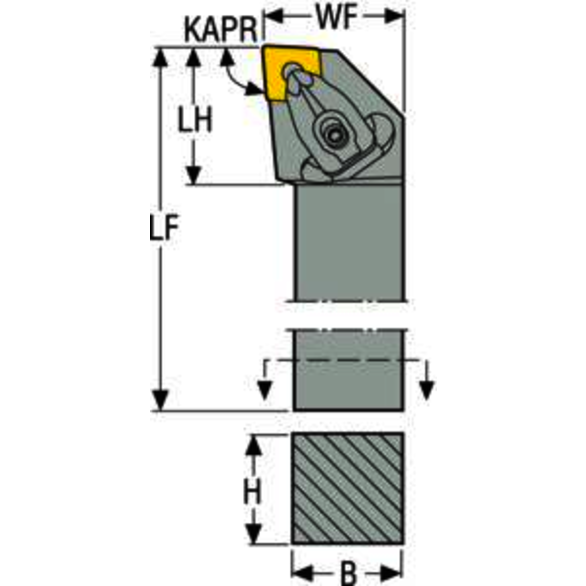

Seco 02565458 Indexable Turning Tool Holder, ANSI Code: DCLNL-20-4D, DCLN Tool Holder, CN..43. Insert, Left Hand Cutting, 31.8 mm Square Shank, 95 deg Lead Angle, Negative Rake, 152.4 mm OAL
SECO 02565458
$246.00
/ EA
Out of Stock
- Hand of Holder: Left Hand
- Insert Compatibility: CN..43.
- Shank Width: 1-1/4 in
- Rake: Negative
- Overall Length: 6.0000 in
- Lead Angle: 95 deg
- Back of Bar to Cutting Edge: 1.5000 in
- Back of Bar to Cutting Edge - Metric: 38.1 mm
- Head Length: 1.3000 in
- Head Length - Metric: 33 mm
- Inscribed Circle - Fractional: 1/2 in
- Insert Holding Method: Clamp
- Insert Inscribed Circle: 1/2 in
- Material: Steel
- Multi-Use Tool: No
- Overall Length - Metric: 152.4 mm
- Part Number: 31064
- Series: Clamp Lock
- Shank Size: 31.8
- Shank Type: Square
- Through Coolant: Non-Through Coolant
- Tool Holder Style: DCLN
- Toolholder Material: Steel
INSERT DCLNL-20-4D
