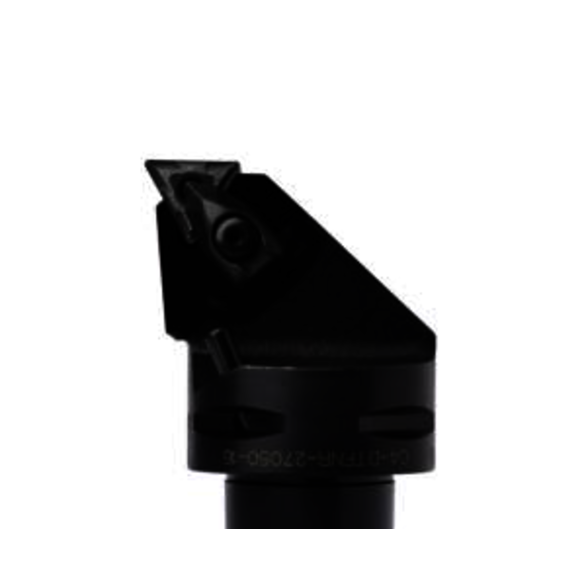

Seco 02588030 Seco-Capto™ Modular Turning/Profiling Cutting Head With Through Coolant, C4 System, 50 mm L Head/Projection, Left Hand Cutting, Insert Compatibility: TN..1604.., External

Seco-Capto™ is a leading quick-change modular tooling system for quick setup and replacement of cutting edge holders. Its robust product design allows retaining excellent stability and high positioning accuracy. The product range serves a comprehensive range of insert types, shapes and sizes.

• Quick tool change, increases the available productive time
• Flexible, same toolholder can be used in different machines which reduces the tool stock
• Modular, building of tools with extension adapters reduces the tool stock
• Rigid, no reduction of cutting data
• Accurate, tapered polygon coupling produces a strong, self-centering joint with repeatability within +/-0.002 mm

Includes: Clamp Pin, Clamp Screw, Coolant Nozzle, Floating Wedge Clamp, Insert Shim, Shim/Clamp Key, Shim Screw and Spring

Seco Modular Turning/Profiling Cutting Head | Series: Seco-Capto | System Size: C4 | 50 mm Head Length/Projection | TNGA/TNMA/TNMG/TNMM Insert | Insert Compatibility: TN..1604.. | Left Hand Cutting Direction | 27 mm Center to Cutting Edge | Clamp/Inserts with Centre Hole Insert Holding Method | External Internal or External
