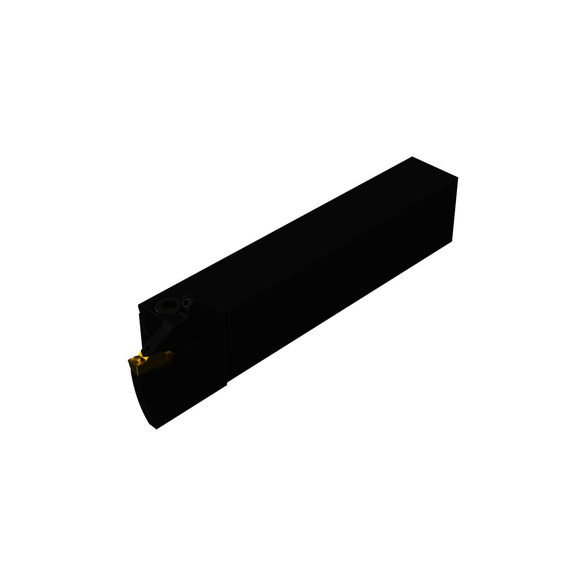

Seco 02610641 Multi-Directional Indexable Turning Tool Holder, ANSI Code: CFIR12505DJET, CFIR Tool Holder, LC..1605.. Insert, Right Hand Cutting, 31.8 mm W Square Shank, 90 deg Lead Angle, 152.4 mm OAL
- Lead Angle: 90 deg
- Back of Bar to Cutting Edge - Metric: 33.2 mm
- Cutting Direction: Right Hand
- Head Length - Metric: 40 mm
- Inscribed Circle - Metric: 15.88 mm
- Insert Seat Size: 5
- Material: Steel
- Overall Length - Metric: 152.4 mm
- Shank Size: 31.8 mm W
- Shank Type: Square
- Tool Holder Style: CFIR
The Seco MDT (Multi-Directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off, and threading. The unique Secoloc™ clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc™ combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability. MDT is available also in combination with Jetstream Tooling®, a high pressure cooling system directing coolant supply to the cutting edge.
Turning and Grooving
Seco Indexable Turning Tool Holder | Multi-Directional | CFIR Tool Holder | 152.4 mm Overall Length | Square Shank | 31.8 mm W Shank | Insert Compatibility: LC..1605.. | 5 Insert Seat | Right Hand Cutting Direction | 15.88 mm Inscribed Circle | 33.200000000000003 mm Back of Bar to Cutting Edge | 90 deg Lead Angle | 40 mm Head Length | ANSI Code: CFIR12505DJET | Steel
