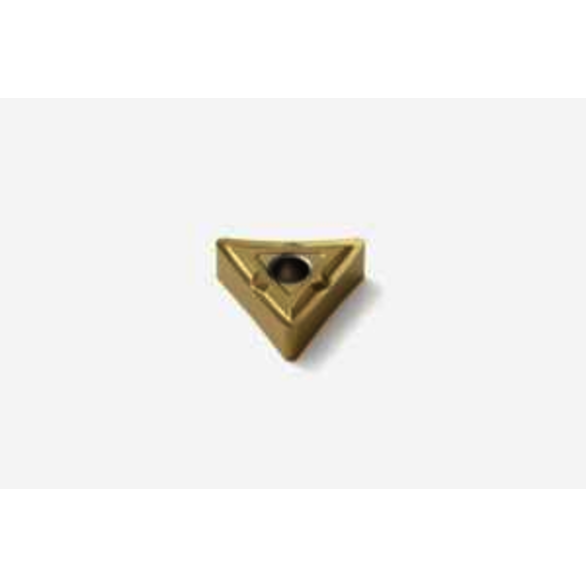

Seco 02615914 Turning Insert, ANSI Code: TNMP333-MF1 TS2000, TNMG Insert, Material Grade: M, S, 160412 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Super Alloys and Titanium, Carbide
SECO 02615914
$17.60
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: TNMG
- Insert Size: 160412
- Material: Carbide
- Length: 16.5 mm
- Thickness: 4.76 in
- Corner Radius: 0.047 in
- Manufacturer's Grade: TS2000
- Chipbreaker: MF1
- Corner Radius - Metric: 1.2 mm
- Cutting Direction: Neutral
- Finish: PVD
- Hole Diameter - Decimal: 0.15 in
- Hole Diameter - Metric: 3.81 mm
- Included Angle: 60 deg
- Inscribed Circle - Metric: 9.52 mm
- Inscribed Circle Size: 9.53 mm
- Material Grade: M, S
- Maximum Depth of Cut: 3.75 in
- Rake: Negative
- Relief Angle: 0 deg
- Seat Size: 16
- Shape: Triangular
- Type: Negative;Basic Shape
- Width: 16.5 mm
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools™
- Excellent surface finish
Medium and Finishing
Seco Turning Insert | TNMG Insert | 160412 Insert | Triangle Shape | 3.75 mm Maximum Depth of Cut | 9.52 mm Inscribed Circle | 4.76 mm Thickness | 16.5 mm Length | 16 Seat | Negative Rake | MF1 Chipbreaker | 1.2 mm Corner Radius | 3.81 mm Diameter Hole | Manufacturer's Grade: TS2000 | ANSI Code: TNMP333-MF1 TS2000 | ISO Code: TNMG160412-MF1 TS2000 | 60 deg Included Angle | 0 deg Relief Angle | Neutral Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M | S | For Use On: Stainless Steel | Super Alloys and Titanium
