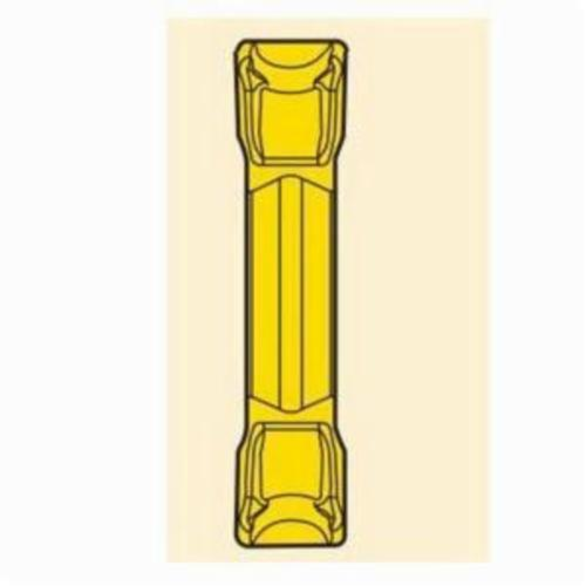

Seco 02625445 MDT Double End Turning Insert, ANSI Code: LCMF160504-0500-MG TGP25, LCMF Insert, Material Grade: P, 1605 Insert, Rectangle Shape, 16 Seat, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TGP25
SECO 02625445
$45.16
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: LCMF
- Insert Size: 1605
- Material: Carbide
- Length: 15.9 mm
- Thickness: 4.5 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: TGP25
- Chipbreaker: MG
- Cutting Direction: Neutral
- Finish: CVD
- Included Angle: 90 deg
- Material Grade: P
- Relief Angle: 7 deg
- Seat Size: 16
- Shape: Rectangle
- Type: Double End;Multi Directional
- Width - Metric: 5 mm
Medium grooving applications
Seco Turning Insert | Double End | Series: MDT | LCMF Insert | 1605 Insert | Rectangle Shape | 4.5 mm Thickness | 5 mm Width | 15.9 mm Length | 16 Seat | MG Chipbreaker | 0.4 mm Corner Radius | Manufacturer's Grade: TGP25 | ANSI Code: LCMF160504-0500-MG TGP25 | ISO Code: LCMF160504-0500-MG TGP25 | 7 deg Relief Angle | Neutral Cutting Direction | Carbide | CVD-TiCN+Al2O3 Coated | Material Grade: P | For Use On: Steel
