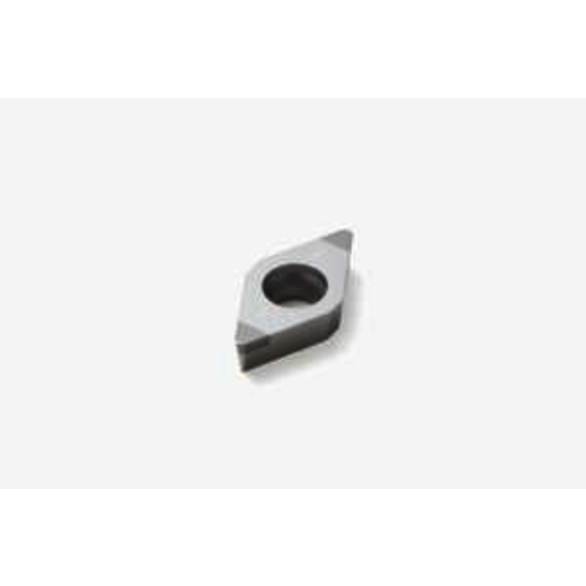

Seco Secomax™ 02650076 Turning Insert, ANSI Code: DCGW21.51S-00420-L1-B CBN150, DCGW Insert, Material Grade: H, 070204 Insert, Diamond Shape, 07 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN150
SECO 02650076
$91.69
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: Uncoated
- Insert Style: DCGW
- Insert Size: 070204
- Material: PCBN
- Length: 7.8 mm
- Thickness: 2.38 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: CBN150
- Chipbreaker: L1-B
- Hole Diameter - Decimal: 0.11417 in
- Hole Diameter - Metric: 2.9 mm
- Included Angle: 55 deg
- Inscribed Circle - Metric: 6.4 mm
- Inscribed Circle Size: 6.35 mm
- Material Grade: H
- Maximum Depth of Cut: 2.75 in
- Relief Angle: 7 deg
- Seat Size: 07
- Shape: Diamond
- Width: 7.8 mm
- Finish: Uncoated
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent Tools™
Seco Secomax Turning Insert | DCGW Insert | 070204 Insert | Diamond Shape | 2.75 mm Maximum Depth of Cut | 6.4 mm Inscribed Circle | 2.38 mm Thickness | 07 Seat | L1-B Chipbreaker | 0.4 mm Corner Radius | 2.9 mm Diameter Hole | Manufacturer's Grade: CBN150 | ANSI Code: DCGW21.51S-00420-L1-B CBN150 | ISO Code: DCGW070204S-01020-L1-B CBN150 | 55 deg Included Angle | 7 deg Relief Angle | PCBN | Uncoated | Material Grade: H | For Use On: Hard Materials
