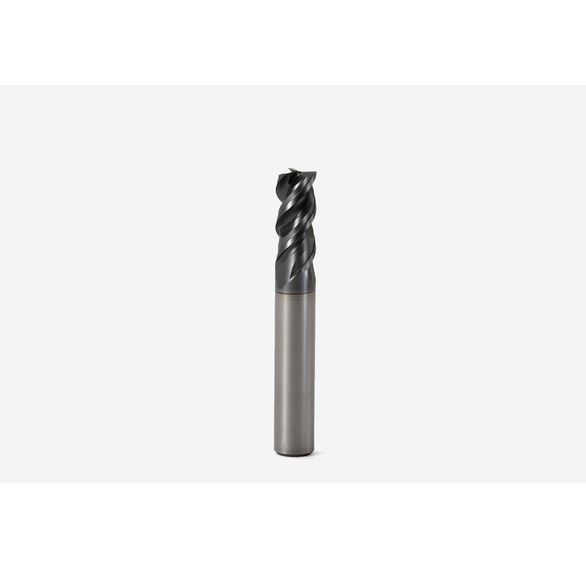

JABRO® Solid2 02712689 JABRO® Solid2 JS553 Center Cutting High Performance Single End Standard Length Universal End Mill, 1/4 in Dia Cutter, 0.003 in Corner Radius, 1/2 in Length of Cut, 3 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, SIRON-A/PVD Coated
- Mill Diameter: 1/4 in
- Chamfer Width: 0.8 mm
- Corner Radius: 0.003 in
- Number of Flutes: 3
- Material: Solid Carbide
- Length of Cut: 1/2 in
- Shank Diameter: 1/4 in
- Shank Diameter - Fractional: 1/4 in
- Shank Diameter - Metric: 6.35 mm
- Overall Length: 2 in
- Cutting Direction: Right Hand
- Helix Angle: 48 deg
- Capacity: 1/8 in
- Cutter Diameter: 1/4 in
- Cutter Diameter - Fractional: 1/4 in
- Finish/Coating: SIRON-A/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Fractional: 1/2 in
- Overall Length - Fractional: 2-1/2 in
- Part Number: 58918
- Shank Type: Cylindrical
Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.
General Machining, Radial, Ramping, Plunging and Drilling
JABRO End Mill | Center Cutting High Performance Single End Standard Length Universal | Series: JABRO Solid2 JS553 | 1/4 in Cutter Dia | 0.003 in Corner Radius | 2-1/2 in Overall Length | 1/2 in Maximum Depth of Cut | 3 Flutes | Right Spiral Flute | 1/4 in Shank Dia | Right Hand Cutting | 48 deg Helix Angle | Cylindrical Shank | ANSI Code: 5530250R015Z3.0-SIRON-A | ISO Code: 5530250R015Z3.0-SIRON-A | Solid Carbide | SIRON-A/PVD Coated
