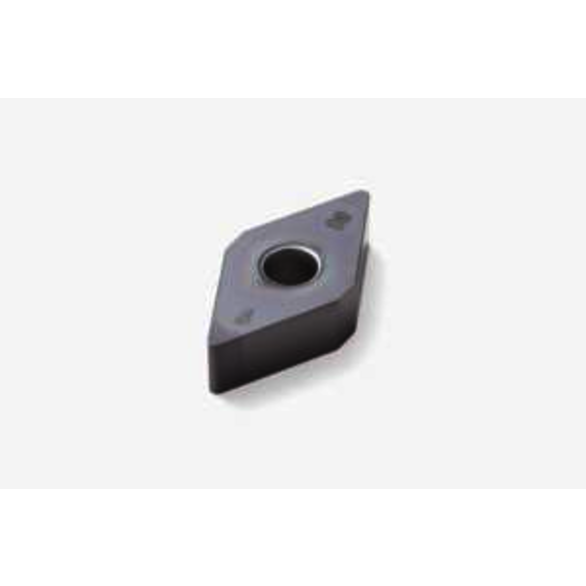

Seco Secomax™ 02726572 Turning Insert, ANSI Code: DNGA443S-00625-L1-U CBN060K, DNGA Insert, Material Grade: H, 150612 Insert, Diamond Shape, 15 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN060K
SECO 02726572
$218.16
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: PVD-TiAlSiN Coated
- Insert Style: DNGA
- Insert Size: 150612
- Material: PCBN
- Length: 15 mm
- Thickness: 6.35 in
- Corner Radius: 1.2 mm
- Manufacturer's Grade: CBN060K
- Chipbreaker: L1-U
- Corner Radius - Metric: 1.2 mm
- Finish: PVD
- Hole Diameter - Decimal: 0.20275 in
- Hole Diameter - Metric: 5.15 mm
- Included Angle: 55 deg
- Inscribed Circle - Metric: 12.7 mm
- Inscribed Circle Size: 12.7 mm
- Material Grade: H
- Maximum Depth of Cut: 5.25 in
- Relief Angle: 0 deg
- Seat Size: 15
- Shape: Diamond
- Type: 2-Sided
- Width: 15 mm
INSERT DNGA443S-00625-L1-U CBN060K
