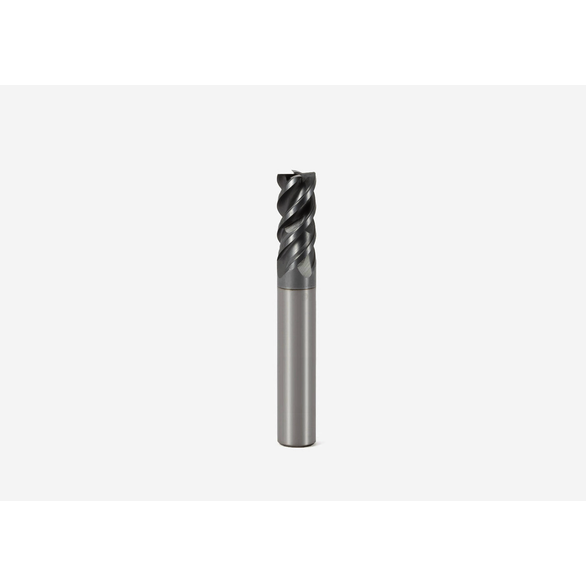

JABRO® Solid2 02733456 JABRO® Solid2 JS554 High Performance Single End Universal End Mill, 4 mm Dia Cutter, 0.045 mm Corner Radius, 10 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 55 mm OAL, SIRON-A/PVD Coated
- Mill Diameter: 4 mm
- Corner Radius: 0.045 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 10 mm
- Shank Diameter: 6 mm
- Overall Length: 55 mm
- Cutting Direction: Right Hand
- Helix Angle: 48 deg
- Cutter Diameter: 4 in
- Finish/Coating: SIRON-A/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 10 mm
- Overall Length - Metric: 55 mm
- Shank Type: Weldon Flat
Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.
General Machining, Radial and Ramping
JABRO End Mill | High Performance Single End Universal | Series: JABRO Solid2 JS554 | 4 mm Cutter Dia | 0.045 mm Corner Radius | 55 mm Overall Length | 10 mm Maximum Depth of Cut | 4 Flutes | Right Spiral Flute | 6 mm Shank Dia | Right Hand Cutting | 48 deg Helix Angle | Weldon Flat Shank | ANSI Code: 554040Z4.3-SIRON-A | ISO Code: 554040Z4.3-SIRON-A | Solid Carbide | SIRON-A/PVD Coated
