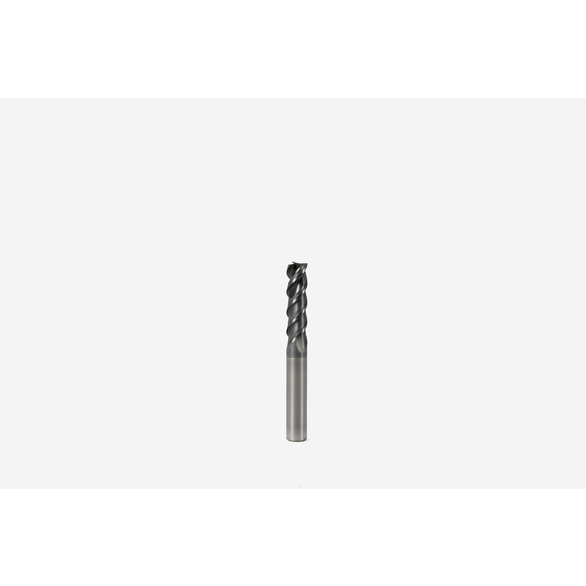

JABRO® Solid2 02733994 JABRO® Solid2 JS553 Center Cutting High Performance Single End Universal End Mill, 12 mm Dia Cutter, 0.15 mm Corner Radius, 40 mm Length of Cut, 3 Flutes, 12 mm Dia Shank, 95 mm OAL, SIRON-A/PVD Coated
- Mill Diameter: 12 mm
- Corner Radius: 0.15 mm
- Number of Flutes: 3
- Material: Solid Carbide
- Length of Cut: 40 mm
- Shank Diameter: 12 mm
- Shank Diameter - Metric: 12 mm
- Overall Length: 95 mm
- Cutting Direction: Right Hand
- Helix Angle: 48 deg
- Capacity: 14 mm
- Cutter Diameter: 12 mm
- Cutter Diameter - Metric: 12 mm
- Finish/Coating: SIRON-A/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 40 mm
- Overall Length - Metric: 95 mm
- Shank Type: Cylindrical
Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.
General Machining, Radial, Ramping, Plunging and Drilling
JABRO End Mill | Center Cutting High Performance Single End Universal | Series: JABRO Solid2 JS553 | 12 mm Cutter Dia | 0.15 mm Corner Radius | 95 mm Overall Length | 40 mm Maximum Depth of Cut | 3 Flutes | Right Spiral Flute | 12 mm Shank Dia | Right Hand Cutting | 48 deg Helix Angle | Cylindrical Shank | ANSI Code: 553L120Z3.0-SIRON-A | ISO Code: 553L120Z3.0-SIRON-A | Solid Carbide | SIRON-A/PVD Coated
