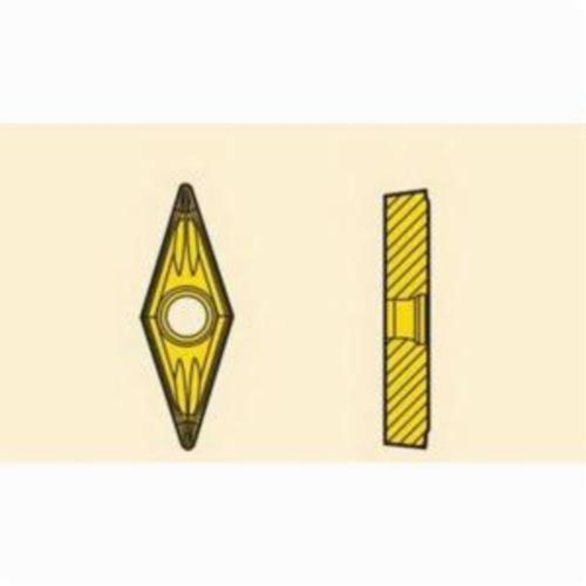

Seco 02755050 Turning Insert, ANSI Code: VBMT332-MF2 CP500, VBMT Insert, Material Grade: M, S, 160408 Insert, Diamond Shape, 16 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Stainless Steel, Super Alloys and Titanium, Carbide
SECO 02755050
$24.36
/ Order multiples of 5 EA
Out of Stock
- Finish/Coating: PVD-TiAlN+TiN Coated
- Insert Style: VBMT
- Insert Size: 160408
- Material: Carbide
- Length: 16 mm
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: CP500
- Chipbreaker: MF2
- Cutting Direction: Neutral
- Finish: PVD
- Hole Diameter - Decimal: 0.17716 in
- Hole Diameter - Metric: 4.5 mm
- Included Angle: 35 deg
- Inscribed Circle - Metric: 9.52 mm
- Inscribed Circle Size: 9.53 mm
- Material Grade: M, S
- Maximum Depth of Cut: 3.75 in
- Rake: Negative/Positive
- Relief Angle: 5 deg
- Seat Size: 16
- Shape: Diamond
- Type: Basic Shape;Positive
- Width: 16 mm
- T5315 grade fine grained substrate with a modified cobalt content to increase strength
- Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers
- Special finish for coating
- Versatile material designed primarily for turning gray and ductile cast iron
- Medium to high cutting speeds
- Suitable for continuous and interrupted cut
Medium and Finishing
Seco Turning Insert | VBMT Insert | 160408 Insert | Diamond Shape | 3.75 mm Maximum Depth of Cut | 9.52 mm Inscribed Circle | 4.76 mm Thickness | 16 Seat | Negative/Positive Rake | MF2 Chipbreaker | 0.8 mm Corner Radius | 4.5 mm Diameter Hole | Manufacturer's Grade: CP500 | ANSI Code: VBMT332-MF2 CP500 | ISO Code: VBMT160408-MF2 CP500 | 35 deg Included Angle | 5 deg Relief Angle | Neutral Cutting Direction | Carbide | PVD-TiAlN+TiN Coated | Material Grade: M | S | For Use On: Stainless Steel | Super Alloys and Titanium
