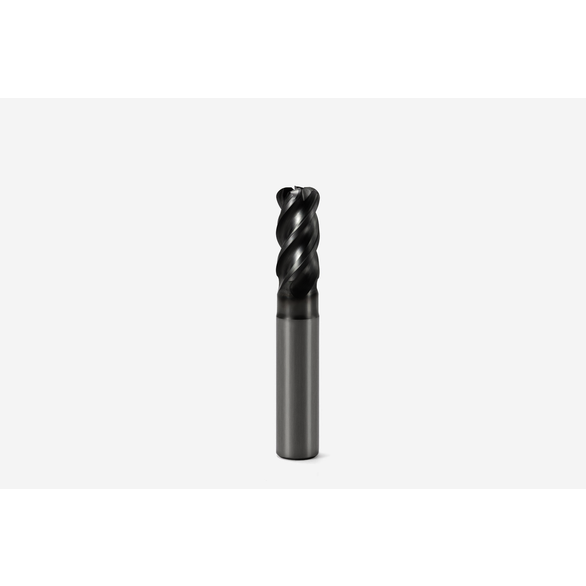

JABRO® HPM 02823421 JABRO® HPM JHP770 High Performance Non-Center Cutting Single End End Mill, 14 mm Dia Cutter, 0.5 mm Corner Radius, 28 mm Length of Cut, 4 Flutes, 14 mm Dia Shank, 95 mm OAL, SIRA/PVD Coated
- Mill Diameter: 14 mm
- Corner Radius: 0.5 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 28 mm
- Shank Diameter: 14 mm
- Shank Diameter - Metric: 14 mm
- Overall Length: 95 mm
- Cutting Direction: Right Hand
- Helix Angle: 42 deg
- Cutter Diameter: 14 mm
- Cutter Diameter - Metric: 14 mm
- Finish/Coating: SIRA/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 28 mm
- Overall Length - Metric: 95 mm
- Shank Type: Cylindrical
High performance machining (HPM) is a machining strategy where high metal removal rates can be achieved by using conventional feeds and speeds in combination with very high ae and ap values. The result is high productivity (material removal rates up to 400% higher compared to conventional machining) and the lowest possible production costs. The HPM range consists of tools for soft, medium and hard steel, stainless steel, super alloys and titanium.
Radial and Ramping Applications
JABRO End Mill | High Performance Non-Center Cutting Single End | Series: JABRO HPM JHP770 | 14 mm Cutter Dia | 0.5 mm Corner Radius | 95 mm Overall Length | 28 mm Maximum Depth of Cut | 4 Flutes | Right Spiral Flute | 14 mm Shank Dia | Right Hand Cutting | 42 deg Helix Angle | Cylindrical Shank | ANSI Code: JABRO HPM JHP770140E2R050.0Z4A-SIRA | ISO Code: JABRO HPM JHP770140E2R050.0Z4A-SIRA | Solid Carbide | SIRA/PVD Coated
