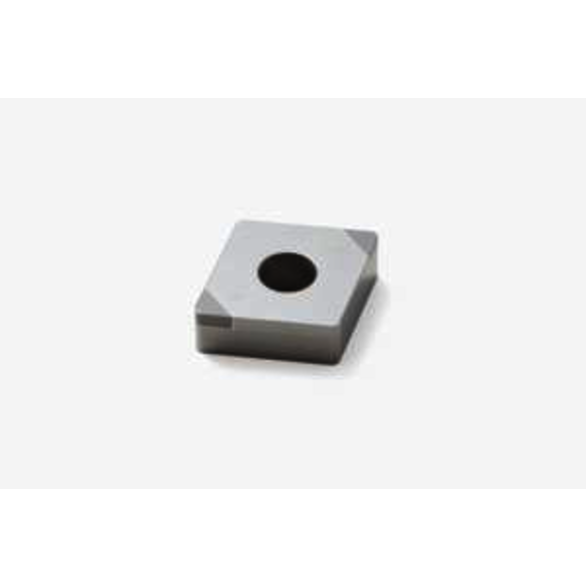

Seco Secomax™ 02825918 Turning Insert, ANSI Code: CNGA431S-00420-L1-B CBN010, CNGA Insert, Material Grade: H, 120404 Insert, Diamond Shape, 12 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN010
SECO 02825918
$91.69
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: Uncoated
- Insert Style: CNGA
- Insert Size: 120404
- Material: PCBN
- Inscribed Circle: 1/2 in
- Thickness: 4.76 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: CBN010
- Chipbreaker: L1-B
- Hole Diameter - Metric: 5.15 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 12.7 mm
- ISO Number: CNGA 431S-00420-L1-B
- Manufacturer Grade: CBN010
- Material Grade: H
- Maximum Depth of Cut: 5.25 in
- Part Number: 09050
- Seat Size: 12
- Shape: Diamond
Standard/Approvals:CNGA 431S-00420-L1-B
Seco Tools 09050 CNGA | 431 | CBN010 | Turning Insert
