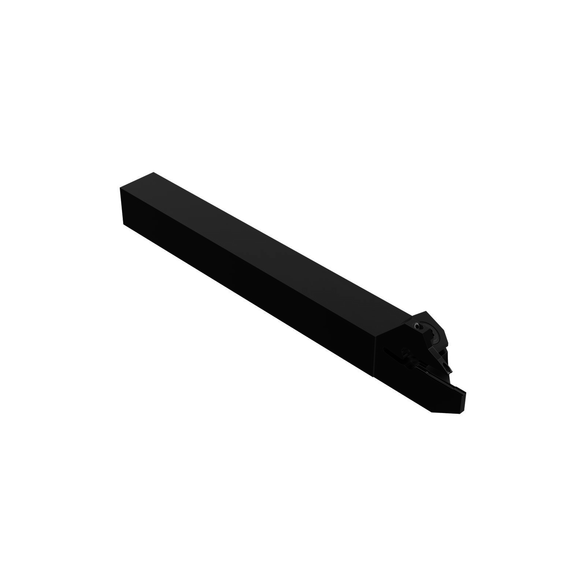

Seco 02828766 Multi-Directional Indexable Turning Tool Holder, ANSI Code: CFOL1616K1902RBJET, CFOL Tool Holder, LC..1902.. Insert, Left Hand Cutting, 16 mm W Square Shank, 90 deg Lead Angle, 125 mm OAL
- Lead Angle: 90 deg
- Back of Bar to Cutting Edge - Metric: 16 mm
- Head Length - Metric: 27 mm
- Insert Seat Size: 2
- Material: Steel
- Overall Length - Metric: 125 mm
- Shank Size: 16 mm W
- Shank Type: Square
- Tool Holder Style: CFOL
The Seco MDT (Multi-Directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off, and threading. The unique Secoloc™ clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc™ combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability. MDT is available also in combination with Jetstream Tooling®, a high pressure cooling system directing coolant supply to the cutting edge.
Turning and Grooving
Seco Indexable Turning Tool Holder | Multi-Directional | CFOL Tool Holder | 125 mm Overall Length | Square Shank | 16 mm W Shank | Insert Compatibility: LC..1902.. | 2 Insert Seat | Left Hand Cutting Direction | 16 mm Back of Bar to Cutting Edge | 90 deg Lead Angle | 27 mm Head Length | ANSI Code: CFOL1616K1902RBJET | Steel
