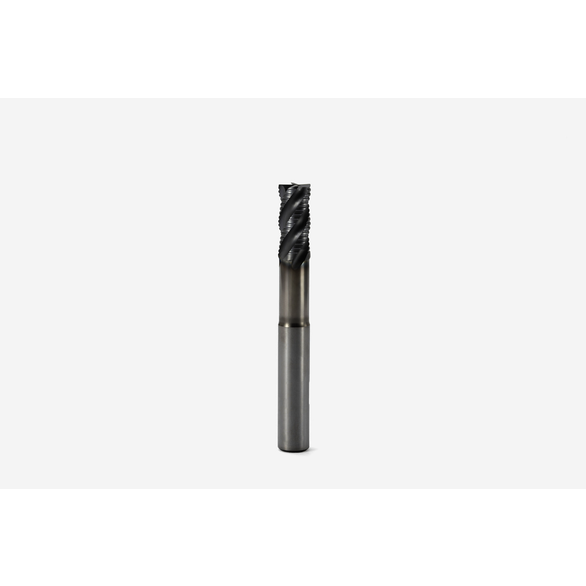

JABRO® HPM 02856511 JABRO® HPM JHP993 Center Cutting High Performance Regular Length Single End Roughing End Mill, 25 mm Dia Cutter, 0.019 mm Corner Radius, 52 mm Length of Cut, 4 Flutes, 25 mm Dia Shank, 150 mm OAL, SIRA/PVD Coated
- Mill Diameter: 25 mm
- Corner Radius: 0.019 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 52 mm
- Shank Diameter: 25 mm
- Shank Diameter - Metric: 25 mm
- Overall Length: 150 mm
- Cutting Direction: Right Hand
- Helix Angle: 38 deg
- Cutter Diameter: 25 mm
- Cutter Diameter - Metric: 25 mm
- Finish/Coating: SIRA/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 52 mm
- Overall Length - Metric: 150 mm
- Shank Type: Weldon Flat
High performance machining (HPM) is a machining strategy where high metal removal rates can be achieved by using conventional feeds and speeds in combination with very high ae and ap values. The result is high productivity (material removal rates up to 400% higher compared to conventional machining) and the lowest possible production costs. The HPM range consists of tools for soft, medium and hard steel, stainless steel, super alloys and titanium.
Radial, Ramping and Roughing
JABRO End Mill | Center Cutting High Performance Regular Length Single End | Series: JABRO HPM JHP993 | 25 mm Cutter Dia | 0.019 mm Corner Radius | 150 mm Overall Length | 52 mm Maximum Depth of Cut | 4 Flutes | Right Spiral Flute | 25 mm Shank Dia | Right Hand Cutting | 38 deg Helix Angle | Weldon Flat Shank | ANSI Code: JABRO HPM JHP993250E3C.3Z4-SIRA | ISO Code: JABRO HPM JHP993250E3C.3Z4-SIRA | Solid Carbide | SIRA/PVD Coated
