Seco Secomax™ 02866868 Turning Insert, ANSI Code: CCGW32.51S-00420-L1-WZ-B CBN010, CCGW Insert, Material Grade: H, 09T304 Insert, Diamond Shape, 09 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN010
SECO 02866868
$88.50
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: Uncoated

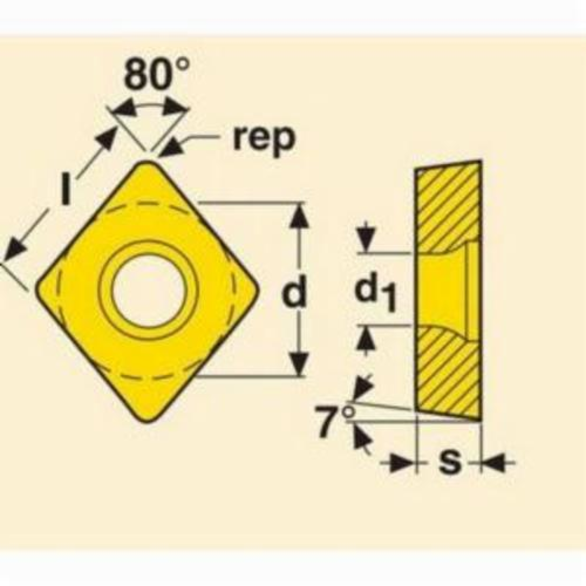

- Insert Style: CCGW
- Insert Size: 09T304
- Material: PCBN
- Length: 9.7 mm
- Thickness: 3.97 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: CBN010
- Chipbreaker: WZ-B
- Hole Diameter - Decimal: 0.17716 in
- Hole Diameter - Metric: 4.5 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 9.5 mm
- Inscribed Circle Size: 9.525 mm
- Material Grade: H
- Maximum Depth of Cut: 3.5 in
- Relief Angle: 7 deg
- Seat Size: 09
- Shape: Diamond
- Width: 9.53 mm
- Finish: Uncoated
Seco Secomax Turning Insert | CCGW Insert | 09T304 Insert | Diamond Shape | 3.5 mm Maximum Depth of Cut | 9.5 mm Inscribed Circle | 3.97 mm Thickness | 09 Seat | WZ-B Chipbreaker | 0.4 mm Corner Radius | 4.5 mm Diameter Hole | Manufacturer's Grade: CBN010 | ANSI Code: CCGW32.51S-00420-L1-WZ-B CBN010 | ISO Code: CCGW09T304S-01020-L1WZB B CBN010 | 80 deg Included Angle | 7 deg Relief Angle | PCBN | Uncoated | Material Grade: H | For Use On: Hard Materials
