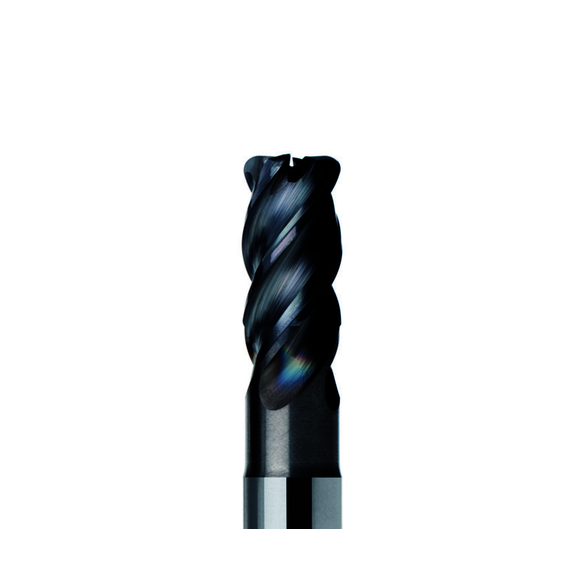

JABRO® HPM 02927947 JABRO® HPM JHP770 High Performance Single End End Mill, 12 mm Dia Cutter, 2.5 mm Corner Radius, 24 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 90 mm OAL, SIRA/PVD Coated
- Mill Diameter: 12 mm
- Corner Radius: 2.5 mm
- Number of Flutes: 4
- Material: Solid Carbide
- Length of Cut: 24 mm
- Shank Diameter: 12 mm
- Shank Diameter - Metric: 12 mm
- Overall Length: 90 mm
- Cutting Direction: Right Hand
- Helix Angle: 42 deg
- Corner Radius - Metric: 2.5 mm
- Cutter Diameter: 12 mm
- Cutter Diameter - Metric: 12 mm
- Finish/Coating: SIRA/PVD Coated
- Flute Type: Right Spiral
- Length of Cut - Metric: 24 mm
- Overall Length - Metric: 90 mm
- Shank Type: Safe-Lock™
High performance machining (HPM) is a machining strategy where high metal removal rates can be achieved by using conventional feeds and speeds in combination with very high ae and ap values. The result is high productivity (material removal rates up to 400% higher compared to conventional machining) and the lowest possible production costs. The HPM range consists of tools for soft, medium and hard steel, stainless steel, super alloys and titanium.
General Machining, Radial and Ramping
JABRO End Mill | High Performance Single End | Series: JABRO HPM JHP770 | 12 mm Cutter Dia | 2.5 mm Corner Radius | 90 mm Overall Length | 24 mm Maximum Depth of Cut | 4 Flutes | Right Spiral Flute | 12 mm Shank Dia | Right Hand Cutting | 42 deg Helix Angle | Safe-Lock Shank | ANSI Code: JABRO HPM JHP770120E2R250.9Z4A-SIRA | ISO Code: JABRO HPM JHP770120E2R250.9Z4A-SIRA | Solid Carbide | SIRA/PVD Coated
