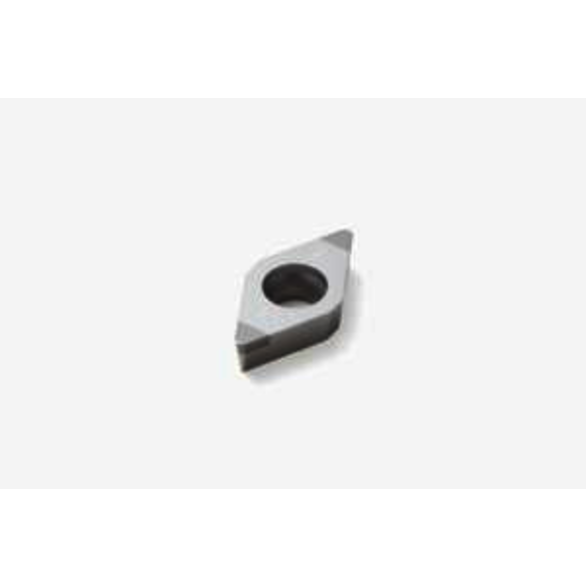

Seco Secomax™ 02937151 Turning Insert, ANSI Code: DCGW21.51E-L1-B CBN010, DCGW Insert, Material Grade: H, 070204 Insert, Diamond Shape, 07 Seat, For Use On Hard Materials, PCBN, Manufacturer's Grade: CBN010
SECO 02937151
$91.69
/ Order multiples of 2 EA
Out of Stock
- Finish/Coating: Uncoated
- Insert Style: DCGW
- Insert Size: 070204
- Material: PCBN
- Length: 7.8 mm
- Thickness: 2.38 in
- Corner Radius: 0.4 in
- Manufacturer's Grade: CBN010
- Chipbreaker: L1-B
- Hole Diameter - Decimal: 0.11417 in
- Hole Diameter - Metric: 2.9 mm
- Included Angle: 55 deg
- Inscribed Circle - Metric: 6.4 mm
- Inscribed Circle Size: 6.35 mm
- Material Grade: H
- Maximum Depth of Cut: 2.75 in
- Relief Angle: 7 deg
- Seat Size: 07
- Shape: Diamond
- Width: 7.8 mm
- Finish: Uncoated
INSERT DCGW21.51E-L1-B CBN010
