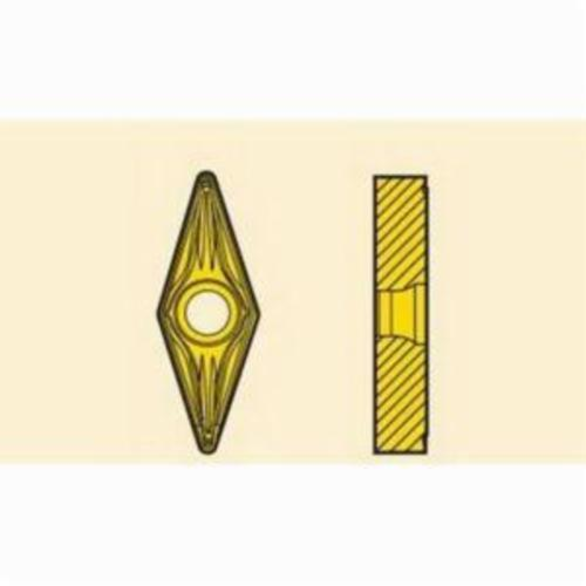

Seco 02956339 Turning Insert, ANSI Code: VBMT332-M5 TP2501, VBMT Insert, Material Grade: P, 160408 Insert, Diamond Shape, 16 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
SECO 02956339
$24.93
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: VBMT
- Insert Size: 160408
- Material: Carbide
- Length: 16 mm
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: TP2501
- Chipbreaker: M5
- Cutting Direction: Neutral
- Finish: CVD
- Hole Diameter - Decimal: 0.17716 in
- Hole Diameter - Metric: 4.5 mm
- Included Angle: 35 deg
- Inscribed Circle - Metric: 9.52 mm
- Inscribed Circle Size: 9.53 mm
- Material Grade: P
- Maximum Depth of Cut: 3.75 in
- Rake: Negative/Positive
- Relief Angle: 5 deg
- Seat Size: 16
- Shape: Diamond
- Type: Basic Shape;Positive
- Width: 16 mm
- Excellent surface finish
- Reliable and secure machining, even in roughing applications
- Possibility to optimize using damped Silent Tools™
Medium Applications
Seco Turning Insert | VBMT Insert | 160408 Insert | Diamond Shape | 3.75 mm Maximum Depth of Cut | 9.52 mm Inscribed Circle | 4.76 mm Thickness | 16 Seat | Negative/Positive Rake | M5 Chipbreaker | 0.8 mm Corner Radius | 4.5 mm Diameter Hole | Manufacturer's Grade: TP2501 | ANSI Code: VBMT332-M5 TP2501 | ISO Code: VBMT160408-M5 TP2501 | 35 deg Included Angle | 5 deg Relief Angle | Neutral Cutting Direction | Carbide | CVD-TiCN+Al2O3 Coated | Material Grade: P | For Use On: Steel
