Seco 02959804 Turning Insert, ANSI Code: DNMG432-MF2 TP0501, DNMG Insert, Material Grade: P, 150408 Insert, Diamond Shape, 15 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP0501
SECO 02959804
$24.45
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Size: 150408
- Material: Carbide
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: TP0501
- Chipbreaker: MF2
- Cutting Direction: Neutral
- Hole Diameter - Metric: 5.15 mm

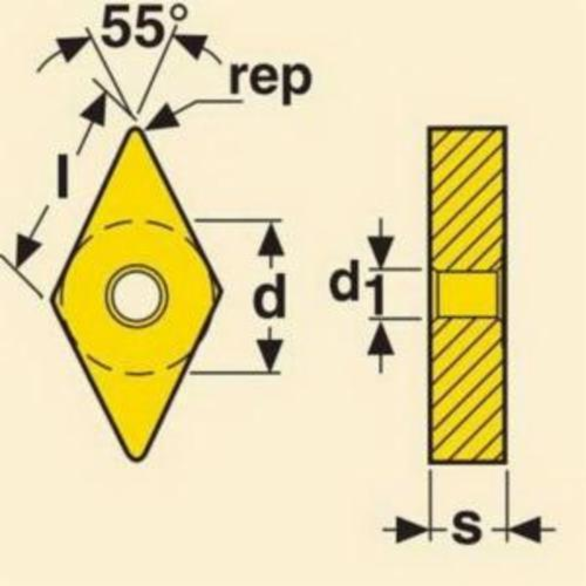

- Included Angle: 55 deg
- Inscribed Circle - Metric: 12.7 mm
- Material Grade: P
- Maximum Depth of Cut: 5.25 in
- Rake: Negative/Positive
- Seat Size: 15
- Shape: Diamond
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Medium and Finishing
Seco Turning Insert | DNMG Insert | 150408 Insert | Diamond Shape | 5.25 mm Maximum Depth of Cut | 12.7 mm Inscribed Circle | 4.76 mm Thickness | 15 Seat | Negative/Positive Rake | MF2 Chipbreaker | 0.8 mm Corner Radius | 5.15 mm Diameter Hole | Manufacturer's Grade: TP0501 | ANSI Code: DNMG432-MF2 TP0501 | ISO Code: DNMG150408-MF2 TP0501 | 55 deg Included Angle | 0 deg Relief Angle | Neutral Cutting Direction | Carbide | CVD-TiCN+Al2O3 Coated | Material Grade: P | For Use On: Steel
