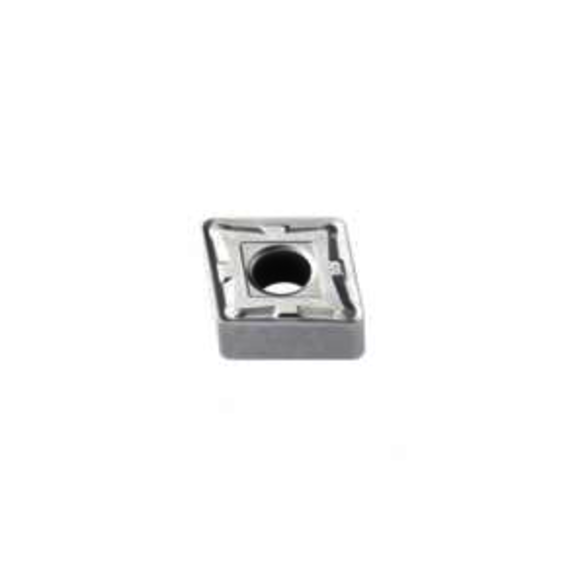

Seco 02959920 Turning Insert, ANSI Code: CNMG543-M3 TP0501, CNMG Insert, Material Grade: P, 160612 Insert, Diamond Shape, 16 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP0501
SECO 02959920
$35.96
/ EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: CNMG
- Insert Size: 160612
- Material: Carbide
- Length: 16.1 mm
- Thickness: 6.35 in
- Corner Radius: 1.2 mm
- Manufacturer's Grade: TP0501
- Chipbreaker: M3
- Corner Radius - Metric: 1.2 mm
- Cutting Direction: Neutral
- Finish: CVD
- Hole Diameter - Decimal: 0.25 in
- Hole Diameter - Metric: 6.35 mm
- Included Angle: 80 deg
- Inscribed Circle - Metric: 15.88 mm
- Inscribed Circle Size: 15.88 mm
- Material Grade: P
- Maximum Depth of Cut: 8 in
- Rake: Negative/Positive
- Relief Angle: 0 deg
- Seat Size: 16
- Shape: Diamond
- Type: Negative;Basic Shape
- Width: 15.88 mm
INSERT CNMG543-M3 TP0501
