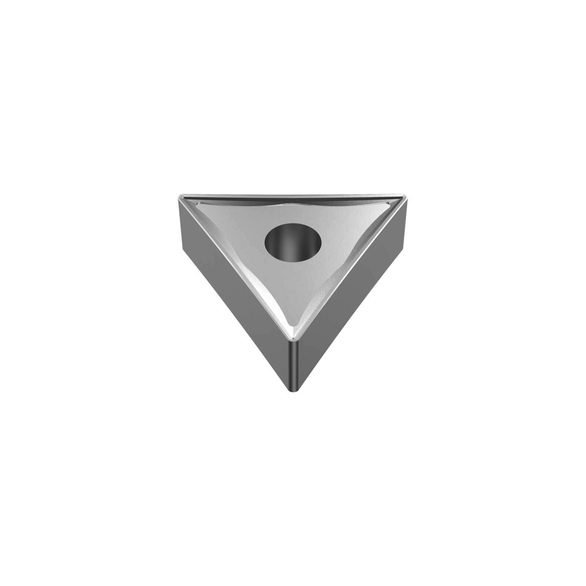

Seco 02960445 Turning Insert, ANSI Code: TNMG433-M5 TP0501, TNMG Insert, Material Grade: P, 220412 Insert, Triangular Shape, 22 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP0501
SECO 02960445
$23.58
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: TNMG
- Insert Size: 220412
- Material: Carbide
- Length: 22 mm
- Thickness: 4.76 in
- Corner Radius: 1.2 mm
- Manufacturer's Grade: TP0501
- Chipbreaker: M5
- Corner Radius - Metric: 1.2 mm
- Cutting Direction: Neutral
- Finish: CVD
- Hole Diameter - Decimal: 0.20275 in
- Hole Diameter - Metric: 5.15 mm
- Included Angle: 60 deg
- Inscribed Circle - Metric: 12.7 mm
- Inscribed Circle Size: 12.7 mm
- Material Grade: P
- Maximum Depth of Cut: 5.25 in
- Rake: Negative/Positive
- Relief Angle: 0 deg
- Seat Size: 22
- Shape: Triangular
- Type: Negative;Basic Shape
- Width: 22 mm
INSERT TNMG433-M5 TP0501
