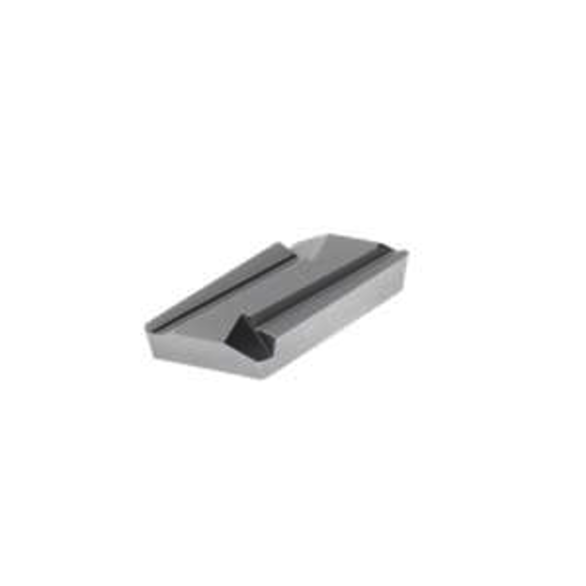

Seco 02960808 Turning Insert, ANSI Code: KNUX160410L-11 TP2501, KNUX Insert, Material Grade: P, 160410 Insert, Parallelogram Shape, 16 Seat, Negative Rake, Left Hand Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501
SECO 02960808
$30.35
/ Order multiples of 10 EA
Out of Stock
- Finish/Coating: CVD-TiCN+Al2O3 Coated
- Insert Style: KNUX
- Insert Size: 160410
- Material: Carbide
- Length: 19 mm
- Thickness: 4.76 in
- Corner Radius: 1 mm
- Manufacturer's Grade: TP2501
- Chipbreaker: 11
- Corner Radius - Metric: 1 mm
- Finish: CVD
- Included Angle: 55 deg
- Inscribed Circle - Metric: 9.53 mm
- Inscribed Circle Size: 9.53 mm
- Material Grade: P
- Rake: Negative
- Relief Angle: 0 deg
- Seat Size: 16
- Shape: Parallelogram
- Width: 9.53 mm
- Width - Metric: 9.53 mm
- Versatile parting and grooving
- Cost efficiency with two edges
- Secure and efficient machining
- Profiling inserts for high-precision profiling operations
- Neutral, right- and left-hand style inserts with geometries dedicated for parting off
- Grooving inserts in many widths and with many corner radii
- Inserts for hard part turning at high feed rates
- Blanks for do-it-yourself grinding
For finishing, medium-rough machining and rough machining
Seco Turning Insert | KNUX Insert | 160410 Insert | Parallelogram Shape | 9.53 mm Inscribed Circle | 4.76 mm Thickness | 9.53 mm Width | 16 Seat | Negative Rake | 11 Chipbreaker | 1 mm Corner Radius | Manufacturer's Grade: TP2501 | ANSI Code: KNUX160410L-11 TP2501 | ISO Code: KNUX160410L-11 TP2501 | 55 deg Included Angle | 0 deg Relief Angle | Left Hand Cutting Direction | Carbide | CVD-TiCN+Al2O3 Coated | Material Grade: P | For Use On: Steel
