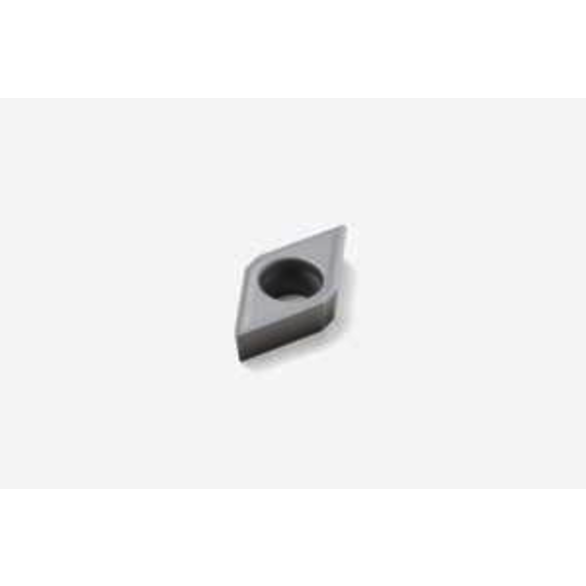

Seco 02975557 Turning Insert, ANSI Code: DCGT070202-M3 HX, DCGT Insert, Material Grade: H, K, M, N, 070202 Insert, Diamond Shape, 07 Seat, Negative/Positive Rake, For Use On Cast Iron, Hard Materials, Non-Ferrous Metals and Stainless Steel, Carbide
SECO 02975557
$18.37
/ EA
Out of Stock
- Finish/Coating: Uncoated
- Insert Style: DCGT
- Insert Size: 070202
- Material: Carbide
- Length: 7.75 mm
- Thickness: 2.38 in
- Corner Radius: 0.2 in
- Manufacturer's Grade: HX
- Chipbreaker: M3
- Hole Diameter - Decimal: 0.11023 in
- Hole Diameter - Metric: 2.9 mm
- Included Angle: 55 deg
- Inscribed Circle - Metric: 6.4 mm
- Inscribed Circle Size: 6.35 mm
- Material Grade: H, K, M, N
- Maximum Depth of Cut: 2.75 in
- Rake: Negative/Positive
- Relief Angle: 7 deg
- Seat Size: 07
- Shape: Diamond
- Width: 7.75 mm
- Finish: Uncoated
INSERT DCGT21.50.5-M3 HX
