Seco 02998593 Turning Insert, ANSI Code: RCMT1204M0-M3 TH1000, RCMT Insert, Material Grade: H, S, 1204M0 Insert, Round Shape, 12 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Hard Materials and Titanium/Super Alloys, Carbide
SECO 02998593
$17.40
/ EA
Out of Stock
- Finish/Coating: PVD-TiAlSiN Coated
- Insert Style: RCMT
- Insert Size: 1204M0
- Material: Carbide
- Thickness: 4.76 in
- Manufacturer's Grade: TH1000
- Chipbreaker: M3
- Cutting Direction: Neutral
- Finish: PVD

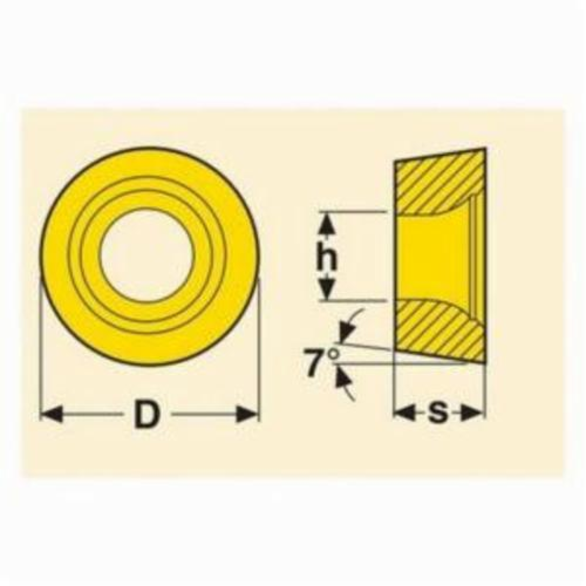

- Hole Diameter - Decimal: 0.17716 in
- Hole Diameter - Metric: 4.5 mm
- Inscribed Circle - Metric: 12.7 mm
- Inscribed Circle Size: 12 mm
- Material Grade: H, S
- Maximum Depth of Cut: 5 in
- Rake: Negative/Positive
- Relief Angle: 7 deg
- Seat Size: 12
- Shape: Round
- Type: Basic Shape;Positive
- When turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn® 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
- Wiper geometries available for high feeds and high quality surface finish
Medium Applications
Seco Turning Insert | RCMT Insert | 1204M0 Insert | Round Shape | 5 mm Maximum Depth of Cut | 12.7 mm Inscribed Circle | 4.76 mm Thickness | 12 Seat | Negative/Positive Rake | M3 Chipbreaker | 4.5 mm Diameter Hole | Manufacturer's Grade: TH1000 | ANSI Code: RCMT1204M0-M3 TH1000 | ISO Code: RCMT1204M0-M3 TH1000 | 7 deg Relief Angle | Neutral Cutting Direction | Carbide | PVD-TiAlSiN Coated | Material Grade: H | S | For Use On: Hard Materials and Titanium/Super Alloys
