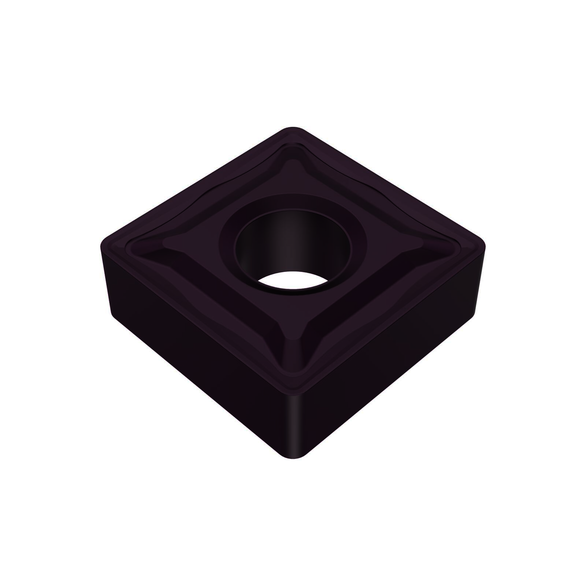

Seco 02998595 Turning Insert, ANSI Code: SNMG432-M5 TH1000, SNMG Insert, Material Grade: H, S, 120408 Insert, Squared Shape, 12 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Hard Materials and Titanium/Super Alloys, Carbide
SECO 02998595
$19.91
/ EA
Out of Stock
- Finish/Coating: PVD-TiAlSiN Coated
- Insert Style: SNMG
- Insert Size: 120408
- Material: Carbide
- Length: 12.7 mm
- Thickness: 4.76 in
- Corner Radius: 0.8 in
- Manufacturer's Grade: TH1000
- Chipbreaker: M5
- Cutting Direction: Neutral
- Finish: PVD
- Hole Diameter - Decimal: 0.20275 in
- Hole Diameter - Metric: 5.15 mm
- Included Angle: 90 deg
- Inscribed Circle - Metric: 12.7 mm
- Inscribed Circle Size: 12.7 mm
- Material Grade: H, S
- Maximum Depth of Cut: 5 in
- Rake: Negative/Positive
- Relief Angle: 0 deg
- Seat Size: 12
- Shape: Squared
- Type: Negative;Basic Shape
- Width - Metric: 12.7 mm
INSERT SNMG432-M5 TH1000
