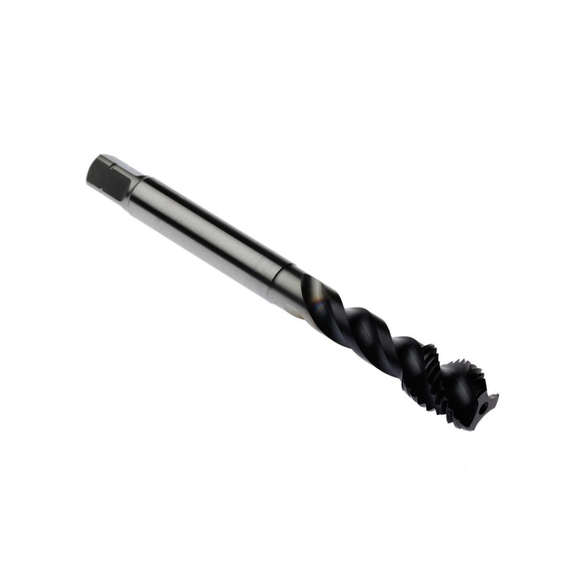

Seco 03000058 Threadmaster™ MTH-P011 Spiral Flute Tap, Right Hand Cutting, M20x1 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, AlTiN Coated, Powdered Metal
SECO 03000058
$301.16
/ EA
Out of Stock
- Flute Direction: Right Hand
- Thread Length: 17 mm
- Thread Standard: Fine
- Number of Flutes: 4
- Material: Powdered Metal
- Finish/Coating: AlTiN Coated
- Chamfer Type: Modified Bottoming
- Class of Fit: 6HX
- Coolant Through: No
- Cutting Direction: Right Hand
- Overall Length - Metric: 125 mm
- Series: Threadmaster MTH-P011
- Shank Diameter - Decimal: 0.63 in
- Size: M20x1
- Thread Length - Metric: 17 mm
- Thread Limit: H6
- Shank Diameter - Metric: 16 mm
- Finish: AlTiN
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 374
For blind hole applications
Seco Spiral Flute Tap | Series: Threadmaster MTH-P011 | Measurement System: Metric | Fine Thread | M20x1 Thread | Modified Bottoming Chamfer | 4 Flutes | Powdered Metal | AlTiN Coated | Class of Fit: 6HX | Right Hand Cutting | 17 mm Thread Length | 125 mm Overall Length | 16 mm Shank Dia | Right Hand Flute Direction | H6 Thread Limit | Material Application: Steel | No Through Coolant
