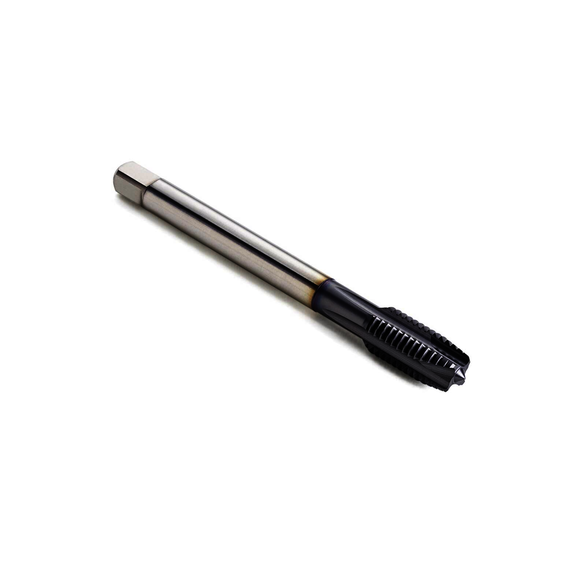

Seco 03000087 Threadmaster™ MTP-M004 Spiral Point Tap, Right Hand Cutting, M12x1.75 Thread, H6 Thread Limit, Plug Chamfer, 4 Flutes, TiCN Coated, Cobalt
SECO 03000087
$104.44
/ EA
Out of Stock
- Coolant Through: No
- Overall Length: 110 mm
- Shank Diameter: 9 in
- Shank Diameter - Decimal: 0.35433 in
- Shank Diameter - Metric: 9 mm
- Thread Length: 23 mm
- Thread Standard: Metric Thread
- Number of Flutes: 4
- Thread Limit: H6
- Material: Cobalt
- Class of Fit: 6H
- Finish/Coating: TiCN Coated
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Finish: TiCN
- Overall Length - Metric: 110 mm
- Series: Threadmaster MTP-M004
- Size: M12x1.75
- Thread Length - Metric: 23 mm
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 376
For through hole applications
Seco Spiral Point Tap | Series: Threadmaster MTP-M004 | Measurement System: Metric | M12x1.75 Thread | Plug Chamfer | 4 Flutes | Cobalt | TiCN Coated | Class of Fit: 6H | Right Hand Cutting | 23 mm Thread Length | 110 mm Overall Length | 9 mm Shank Dia | Material Application: Stainless Steel | H6 Thread Limit | No Through Coolant
