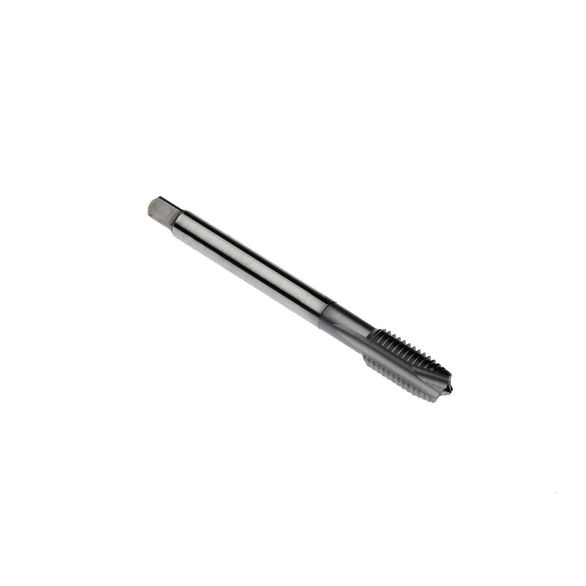

Seco 03000143 Threadmaster™ MTP-N002 Spiral Point Tap, Right Hand Cutting, M14x2 Thread, H6 Thread Limit, Plug Chamfer, 4 Flutes, Bright, Cobalt
SECO 03000143
$90.62
/ EA
Out of Stock
- Coolant Through: No
- Overall Length: 110 mm
- Shank Diameter - Decimal: 0.43307 in
- Shank Diameter - Metric: 11 mm
- Thread Length: 25 mm
- Thread Standard: Metric Thread
- Thread Size: M14x2
- Number of Flutes: 4
- Thread Limit: H6
- Material: Cobalt
- Class of Fit: 6H
- Finish/Coating: Bright
- Chamfer Type: Plug
- Cutting Direction: Right Hand
- Overall Length - Metric: 110 mm
- Series: Threadmaster MTP-N002
- Size: M14x2
- Thread Length - Metric: 25 mm
- Finish: Bright
- Optimized threading operations
- Versatility of combined processes
- Reduced tooling inventory and cost
- Superior thread surfaces
- High efficiency chip evacuation
- Longer tool life
Standard/Approvals: DIN 376
For through hole applications
Seco Spiral Point Tap | Series: Threadmaster MTP-N002 | Measurement System: Metric | M14x2 Thread | Plug Chamfer | 4 Flutes | Cobalt | Bright | Class of Fit: 6H | Right Hand Cutting | 25 mm Thread Length | 110 mm Overall Length | 11 mm Shank Dia | Material Application: Non-Ferrous Materials | H6 Thread Limit | No Through Coolant
